NEOTRAK
Fetal monitoring straps and sensors redesigned.
Duration: 16 weeks
Task Analysis

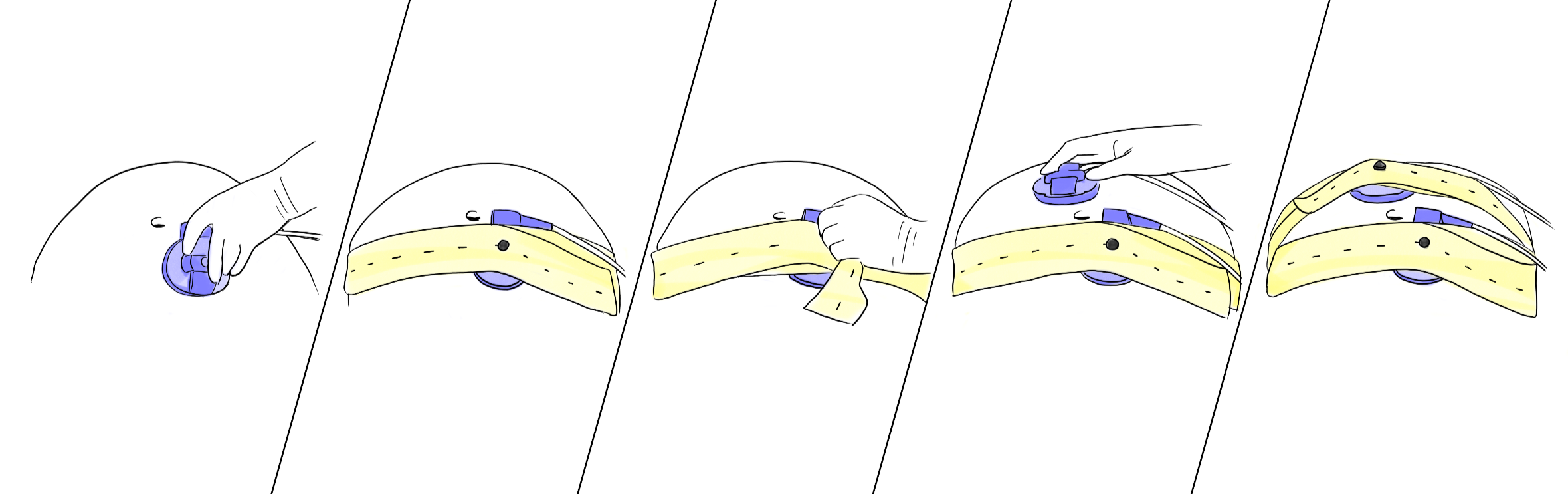

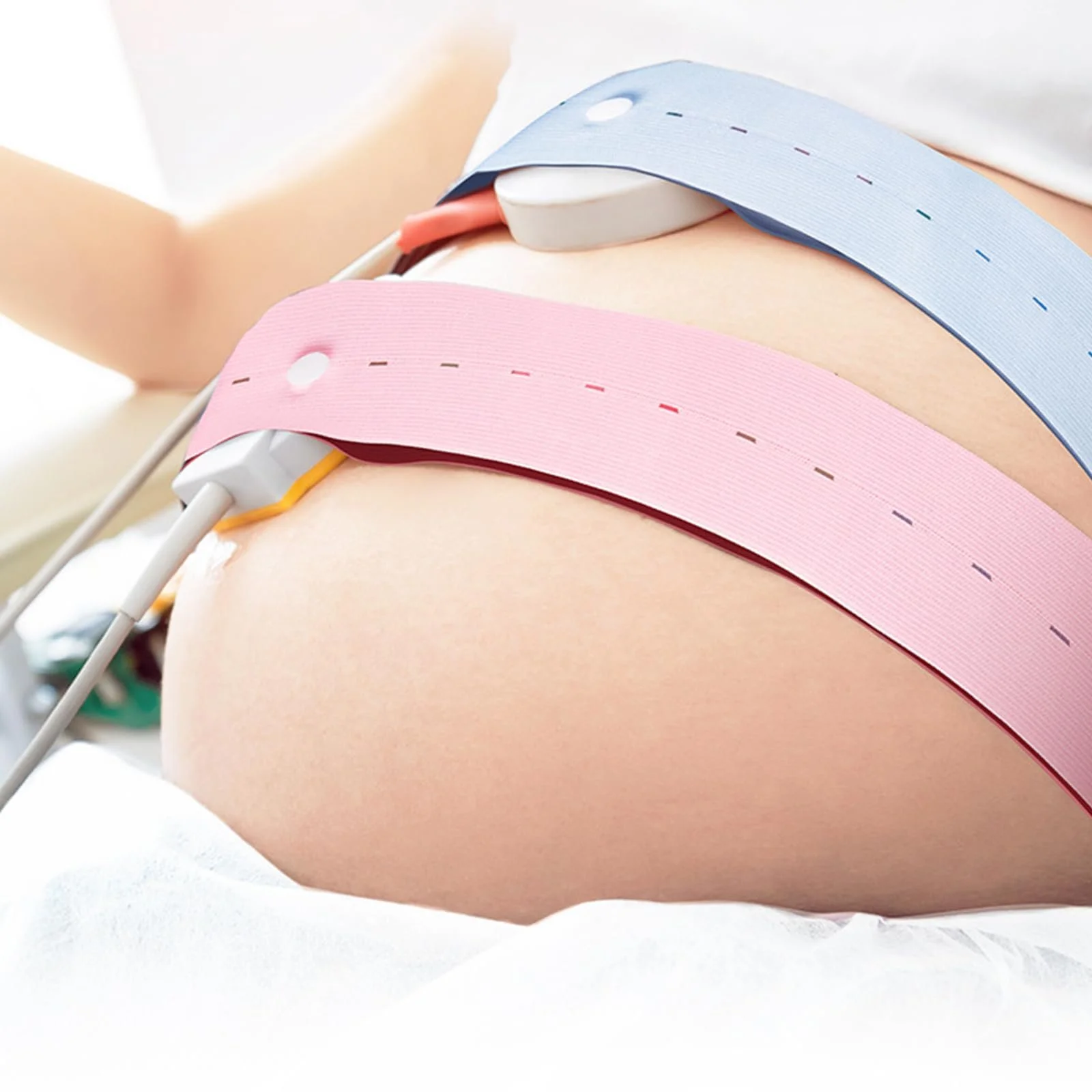

The current product
This device monitors fetal heart rate and the mother’s uterine contractions during labor.
Apply ultrasound gel to the transducer. Move the transducer around the abdomen until the baby’s heartbeat is clearly detected
Position the ultrasound transducer over the best spot for picking up fetal heart tones.
Wrap elastic straps around the mother’s abdomen. Plug the sensors into the fetal monitor machine.
Repeat steps for next transducer that measures uterine contractions.
Done

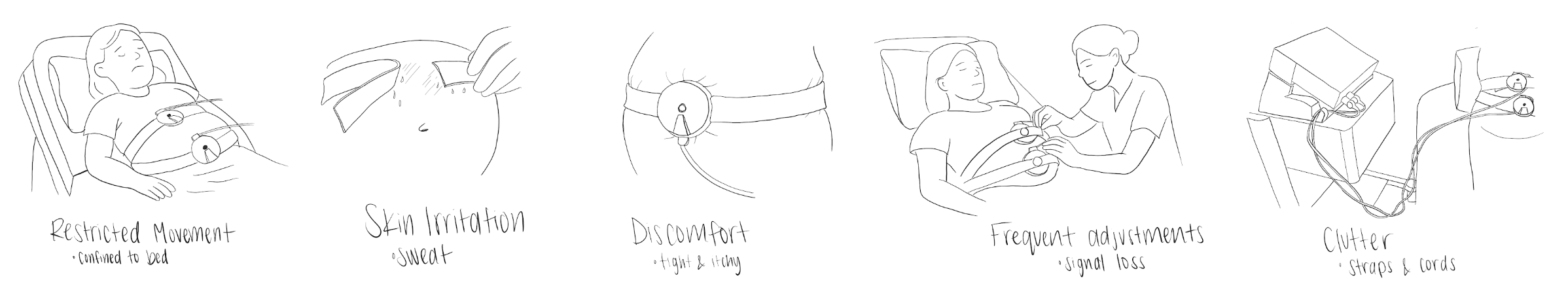

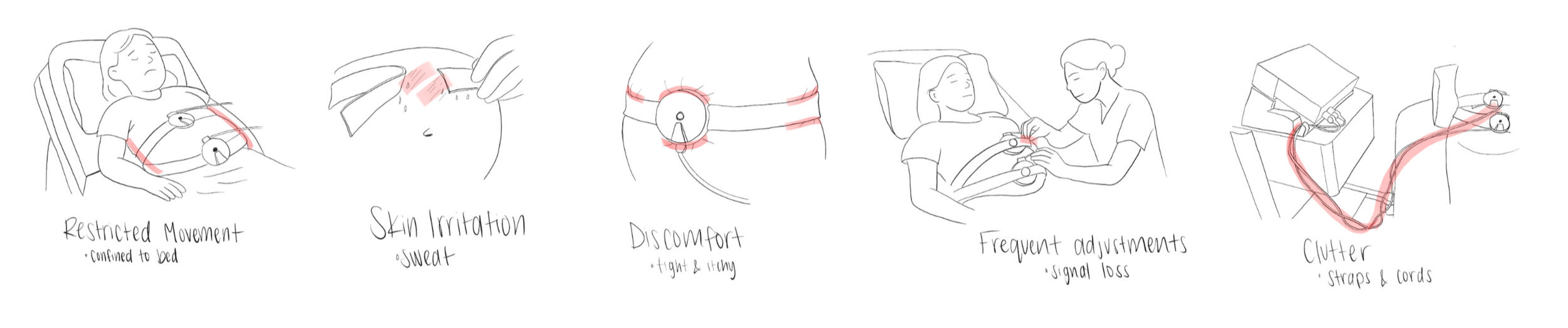

Pain Points
Goal
Fetal monitoring that is comfortable and easily adjustable for the patient, and low maintenance for the provider.

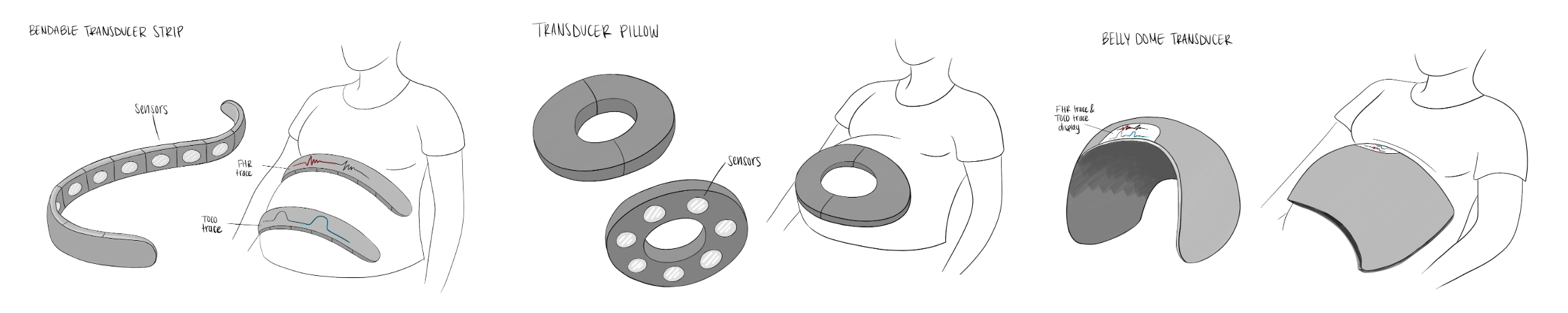

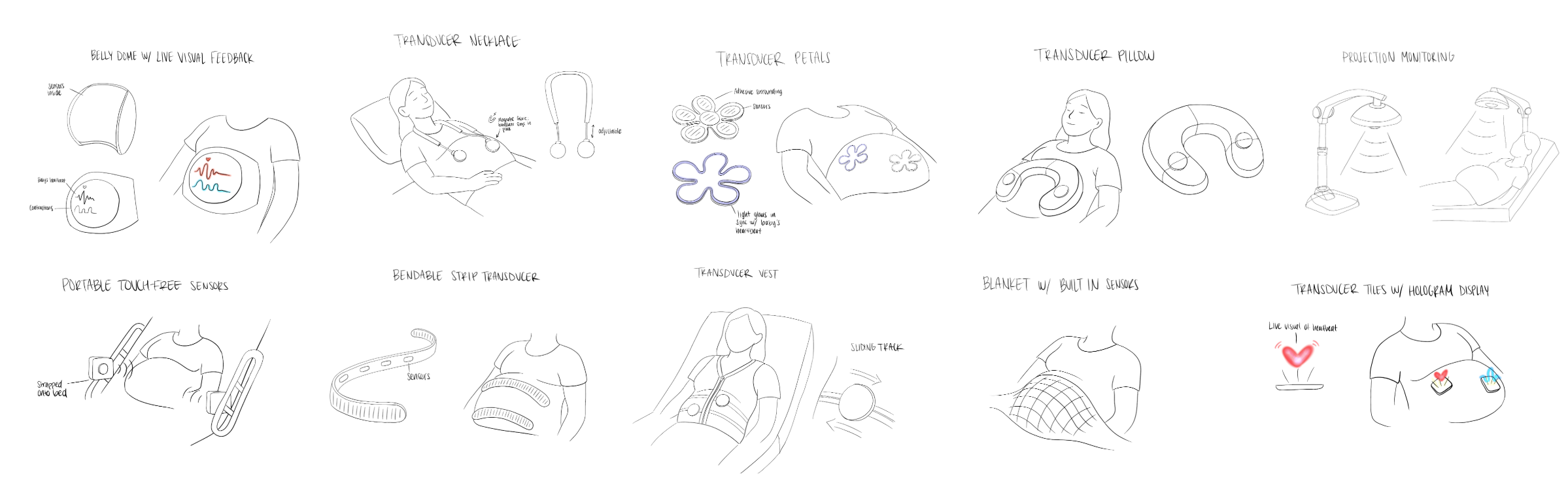

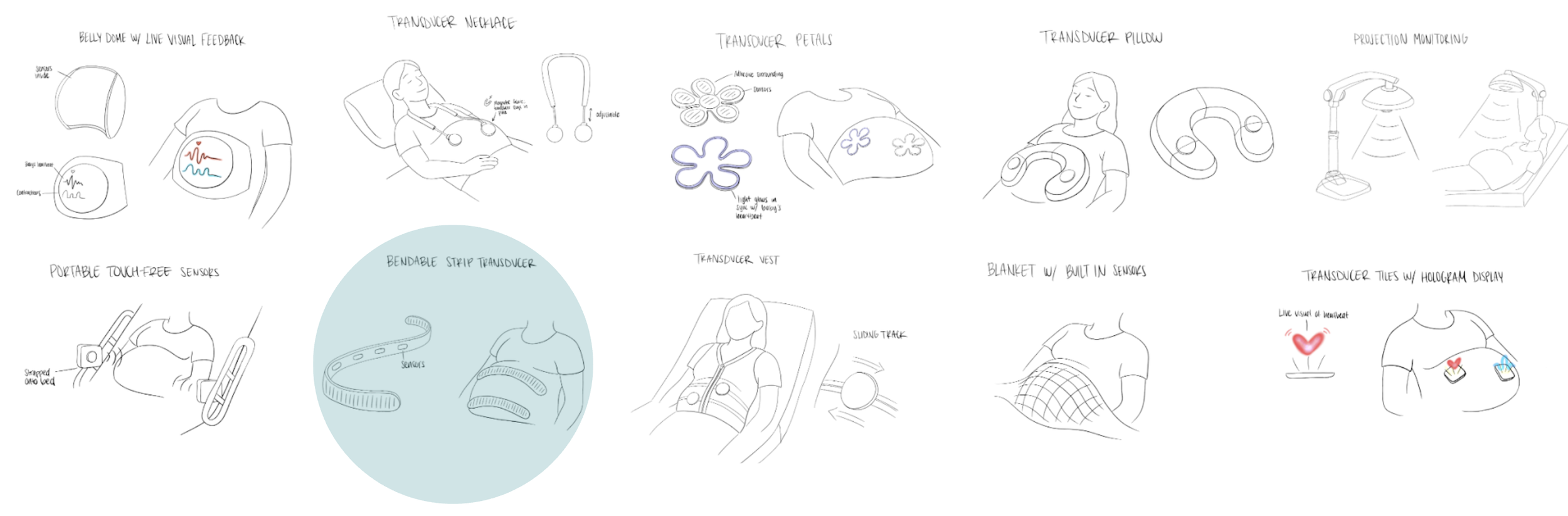

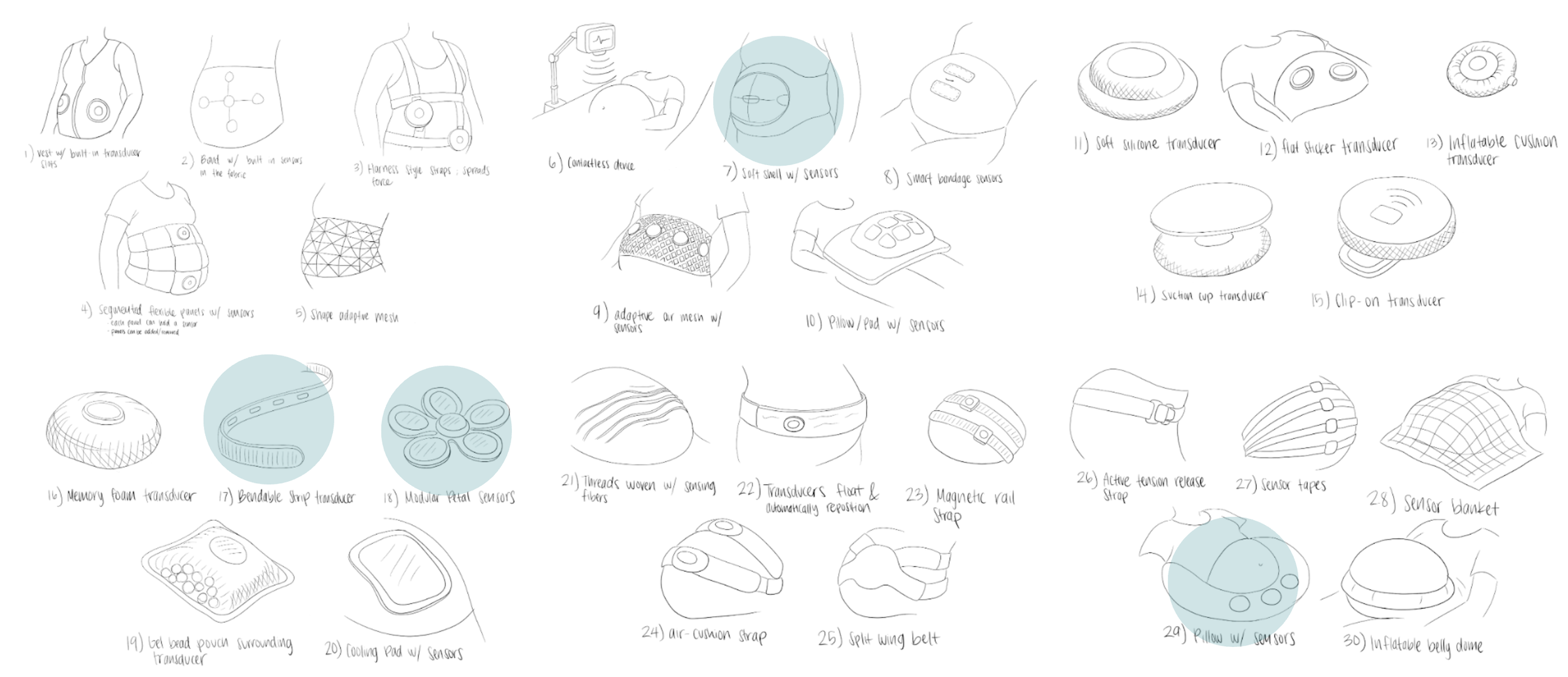

Rapid Ideation

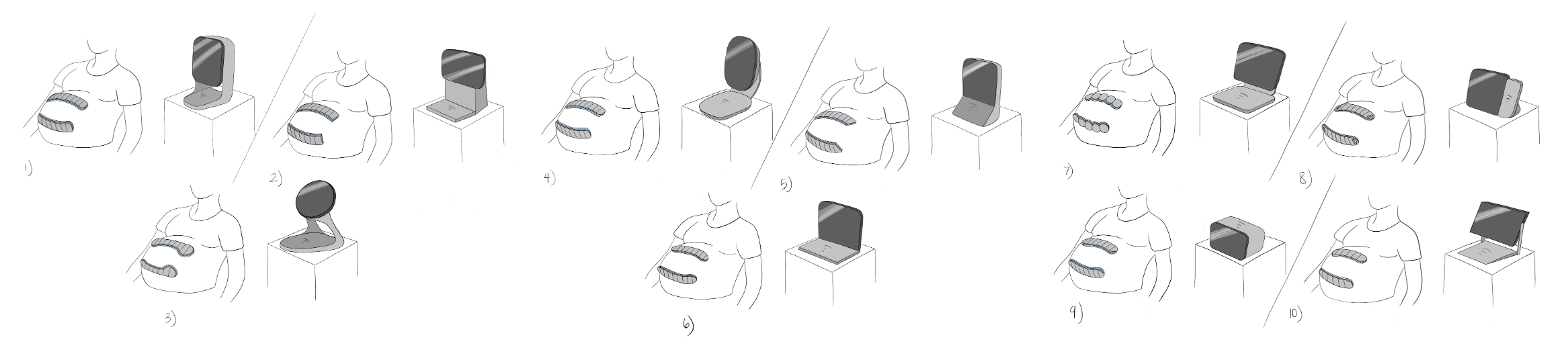

Selected Concepts

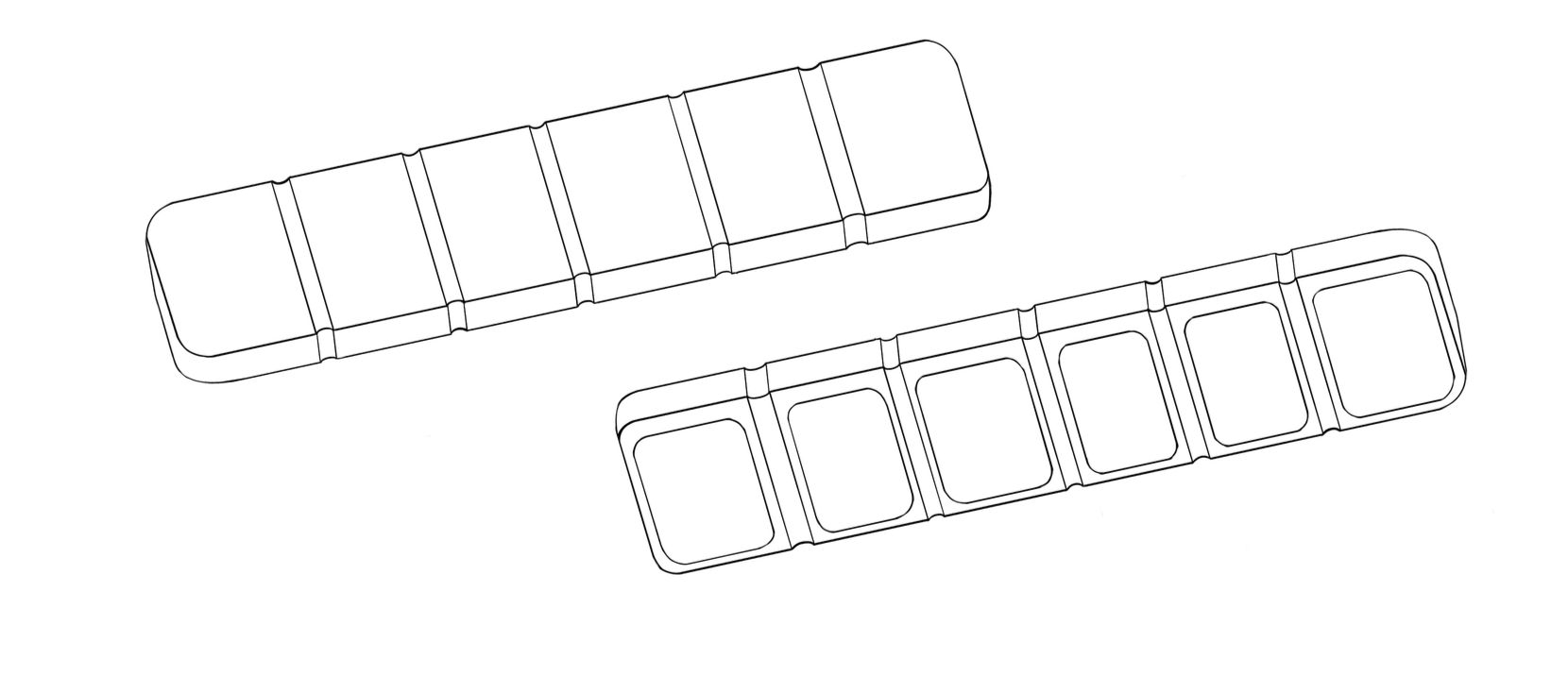

Evolved Concepts

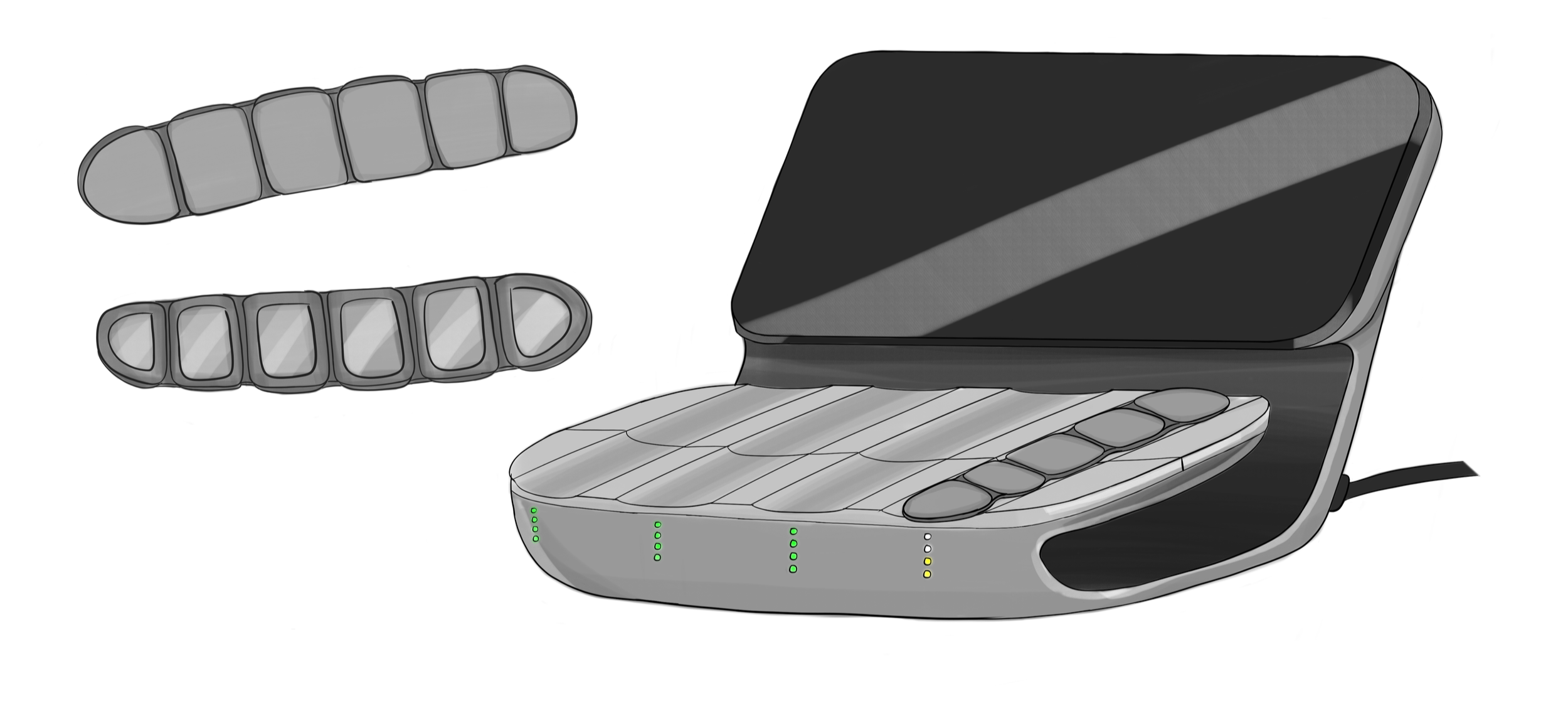

Chosen Direction and Iterations

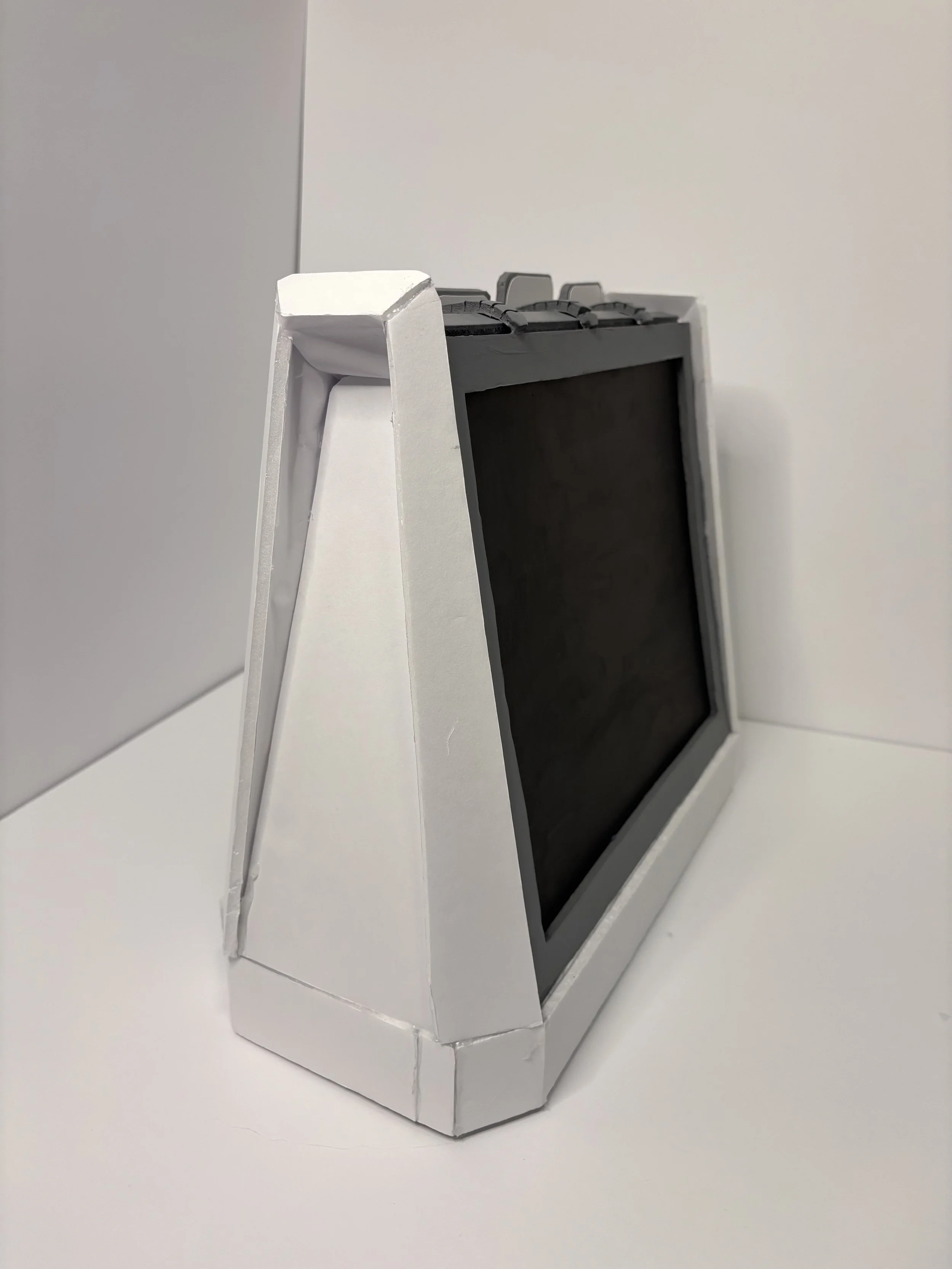

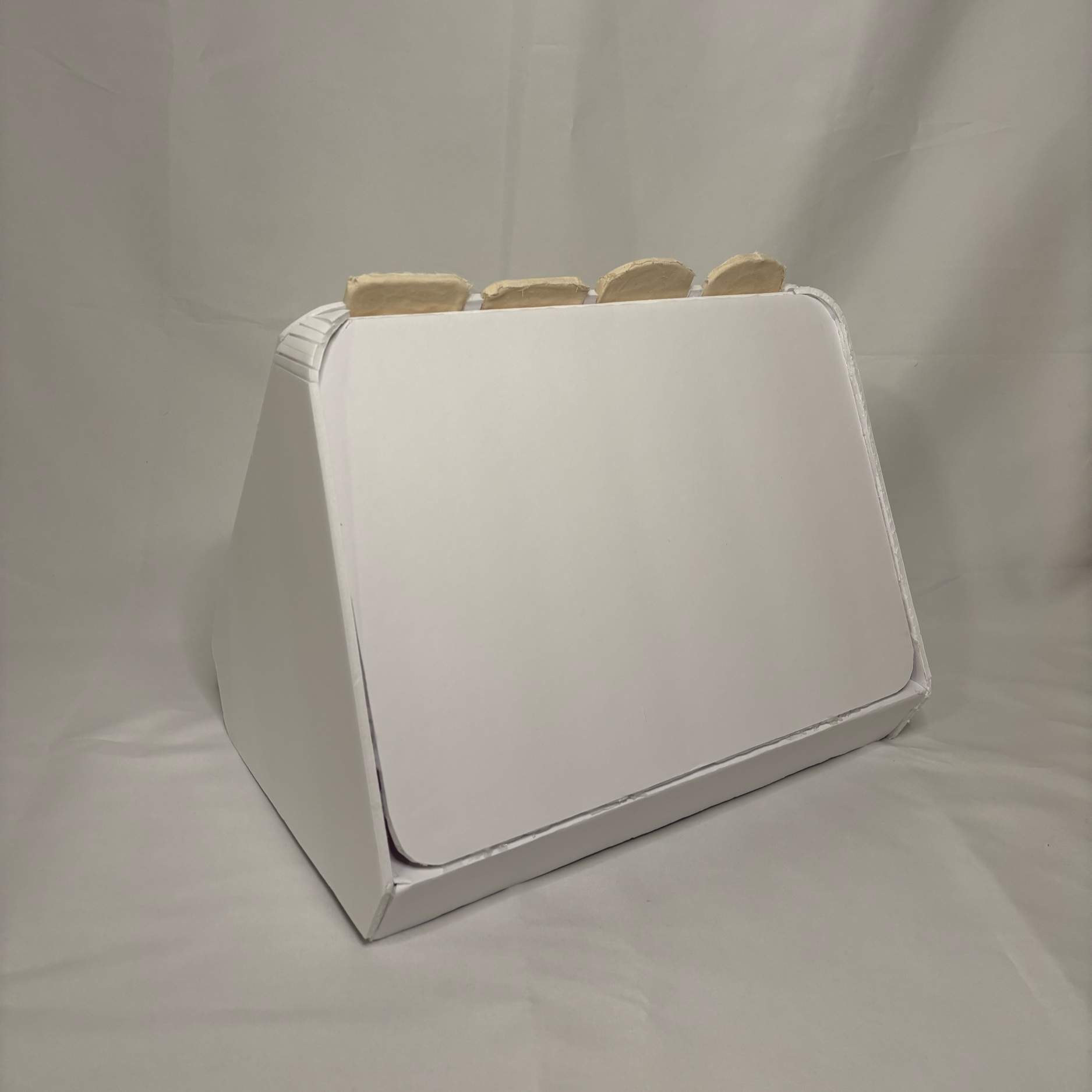

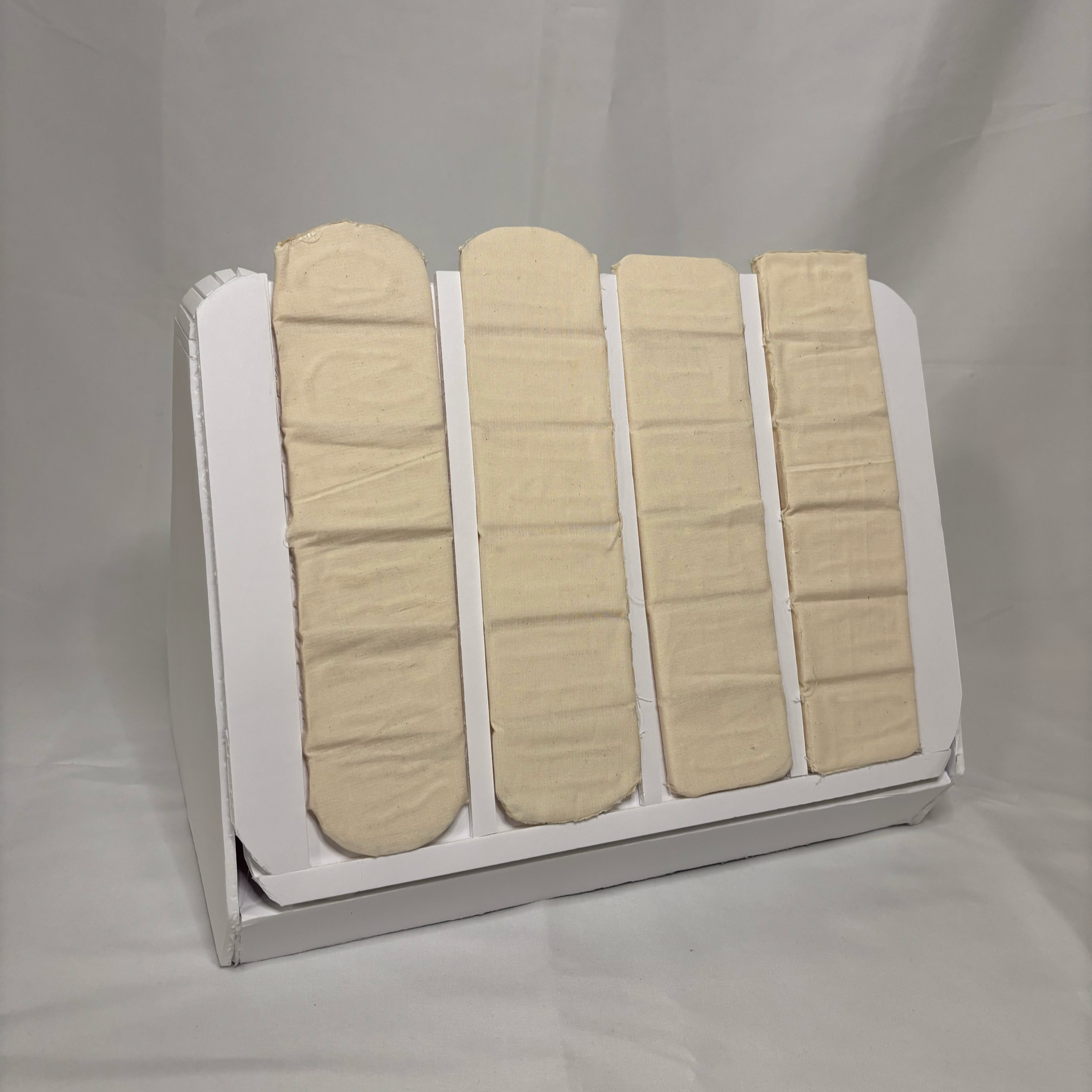

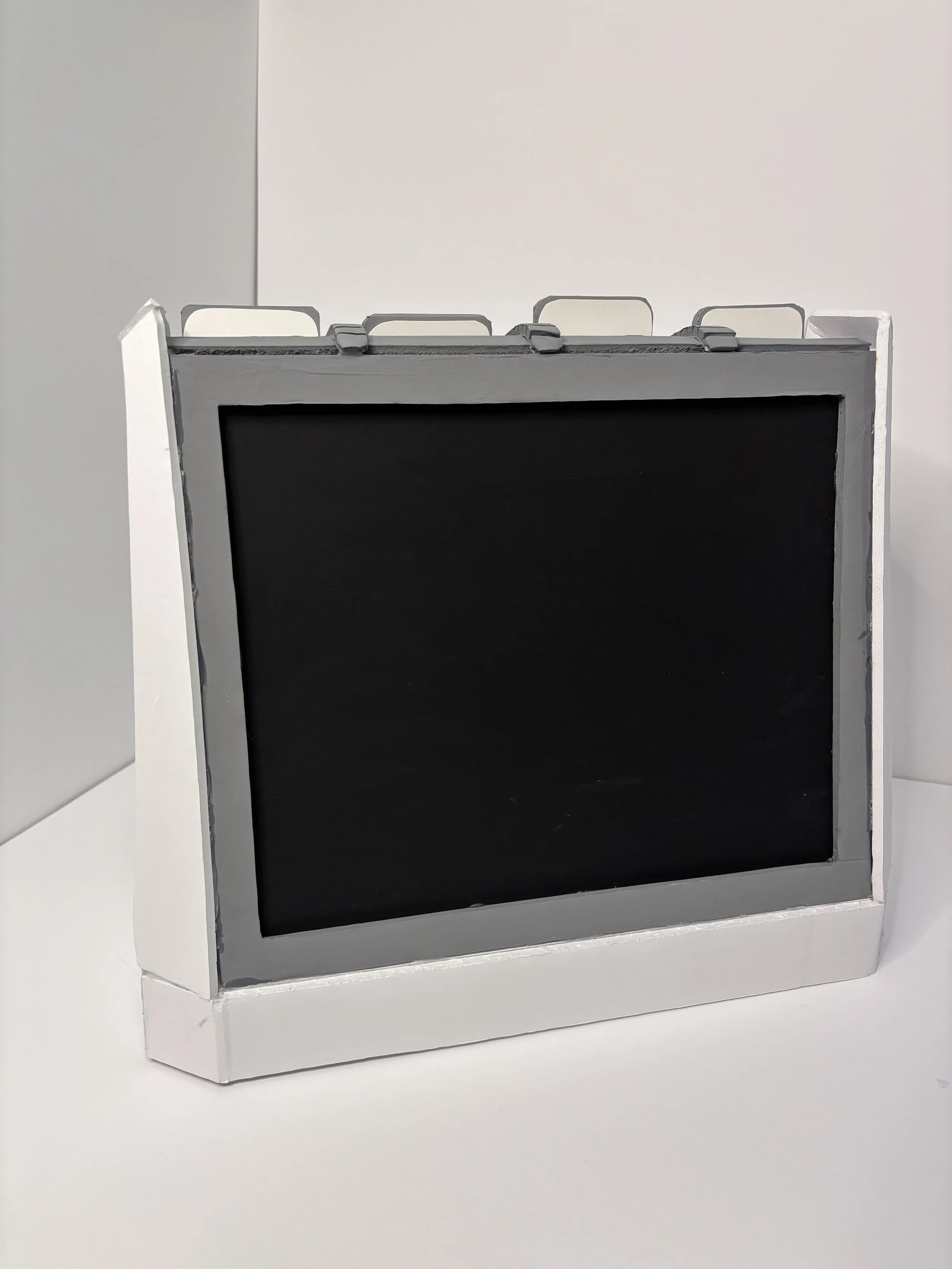

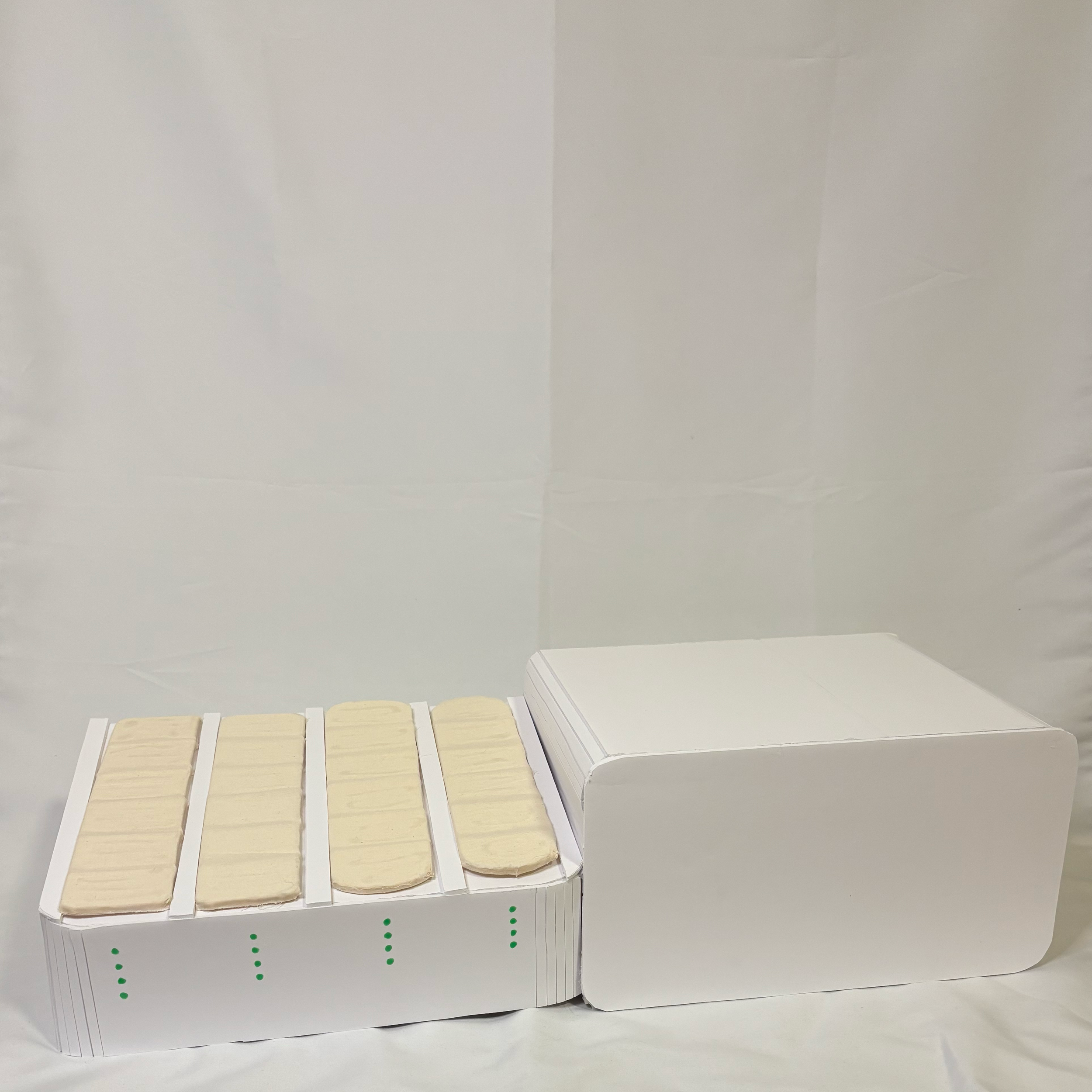

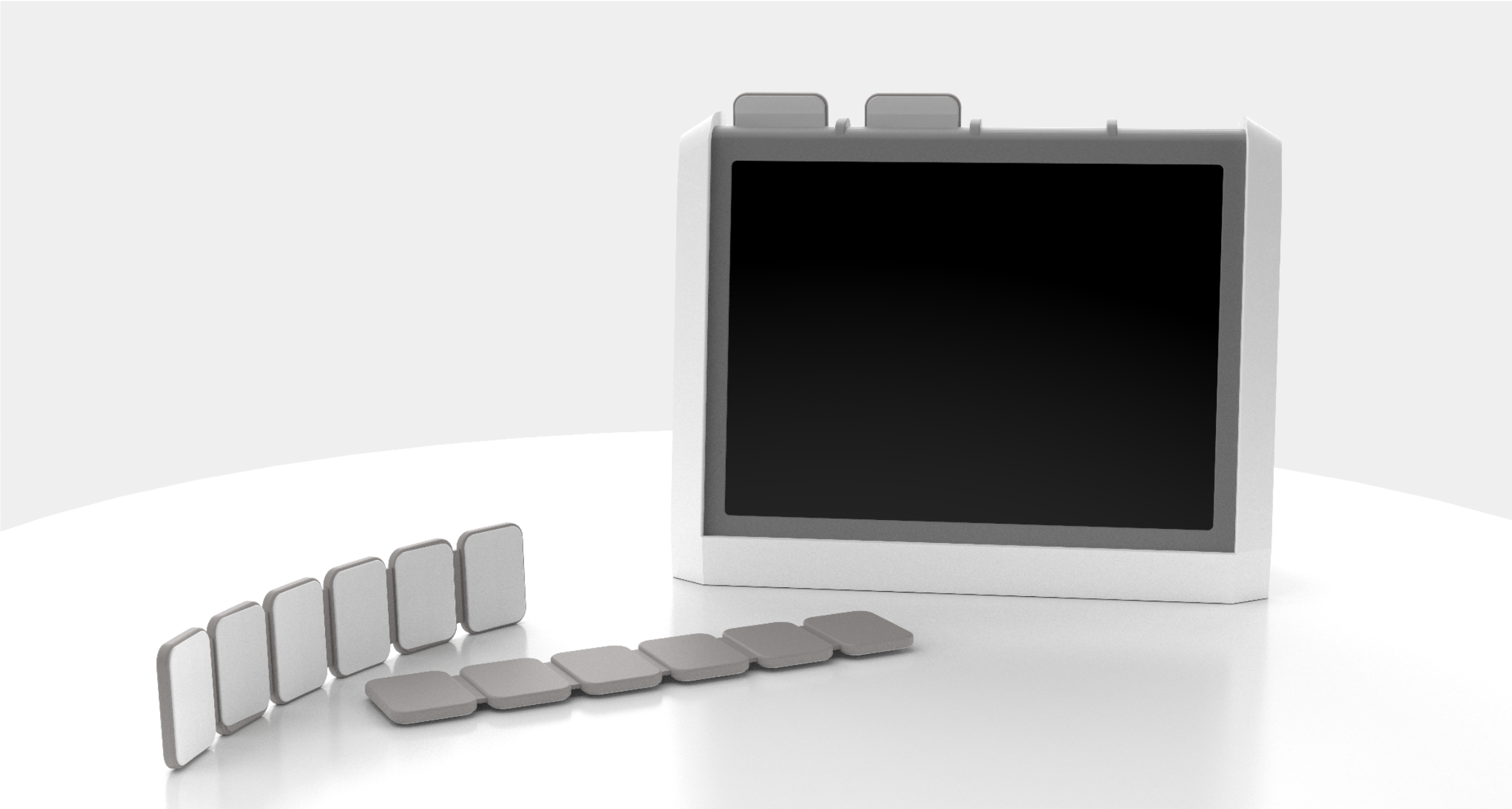

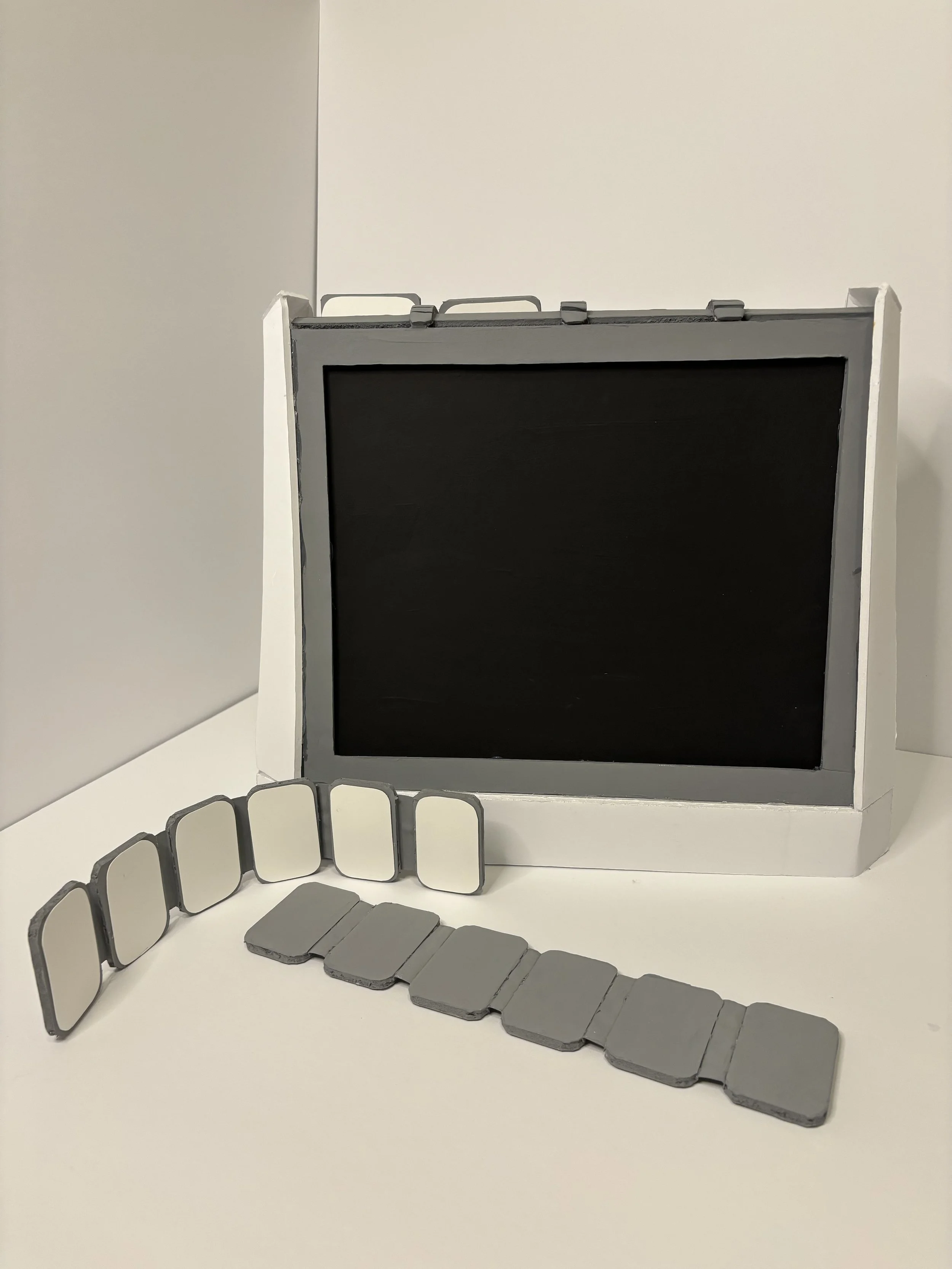

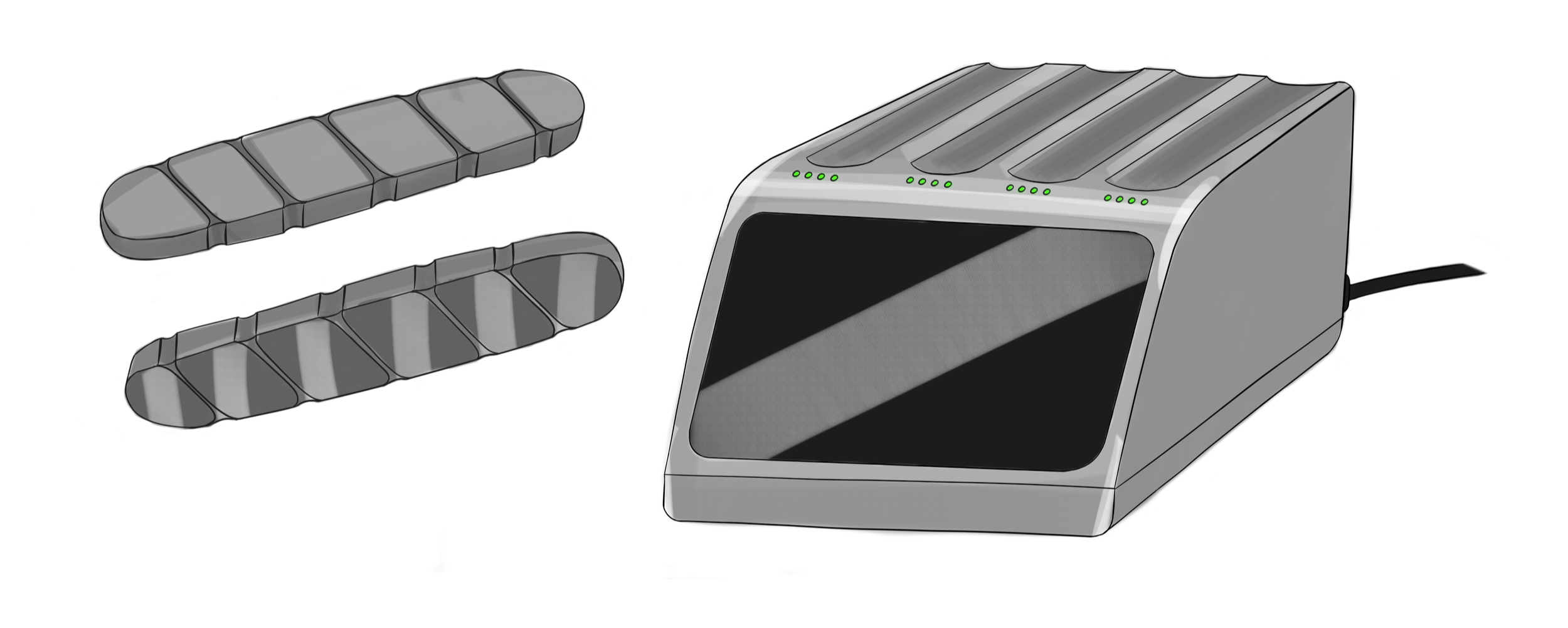

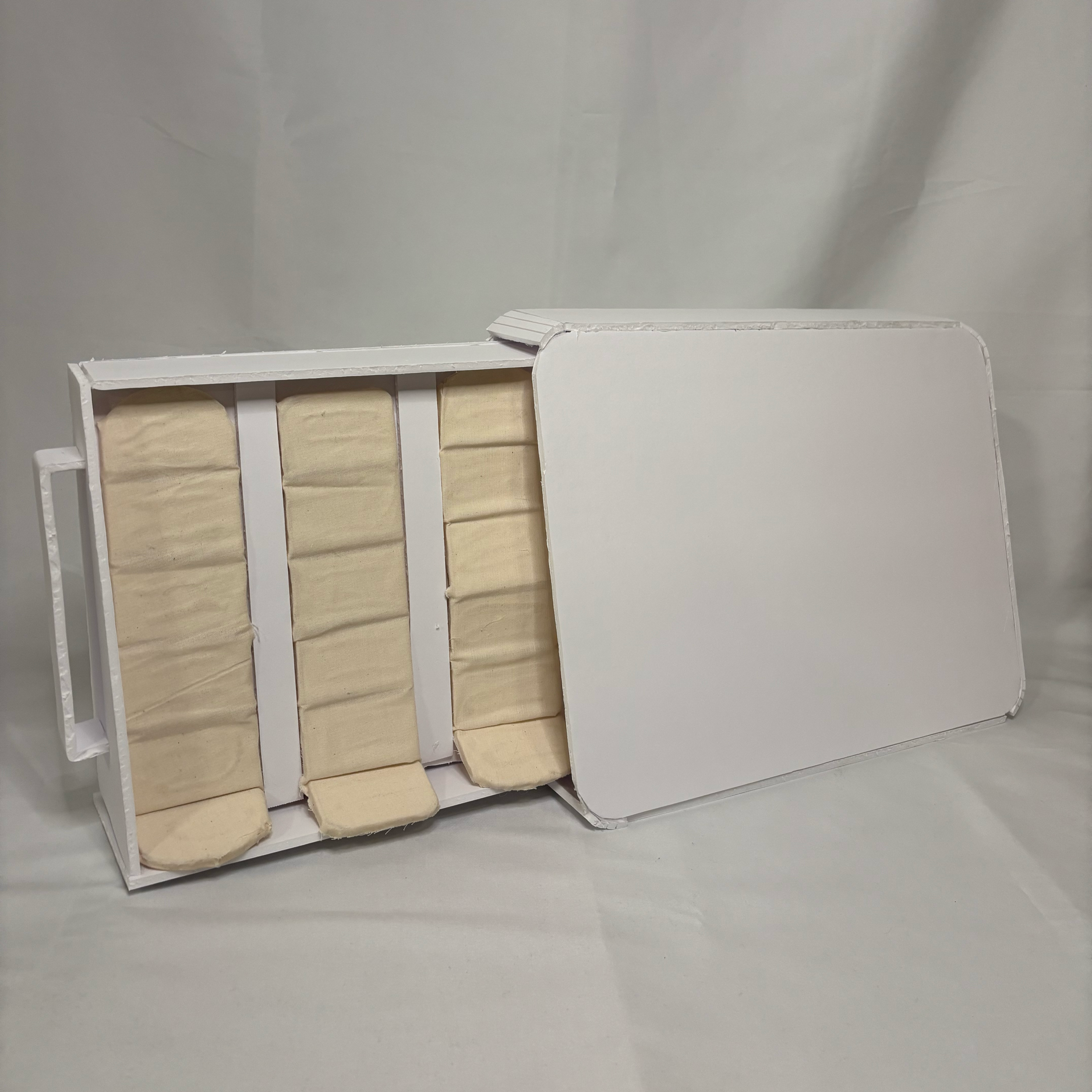

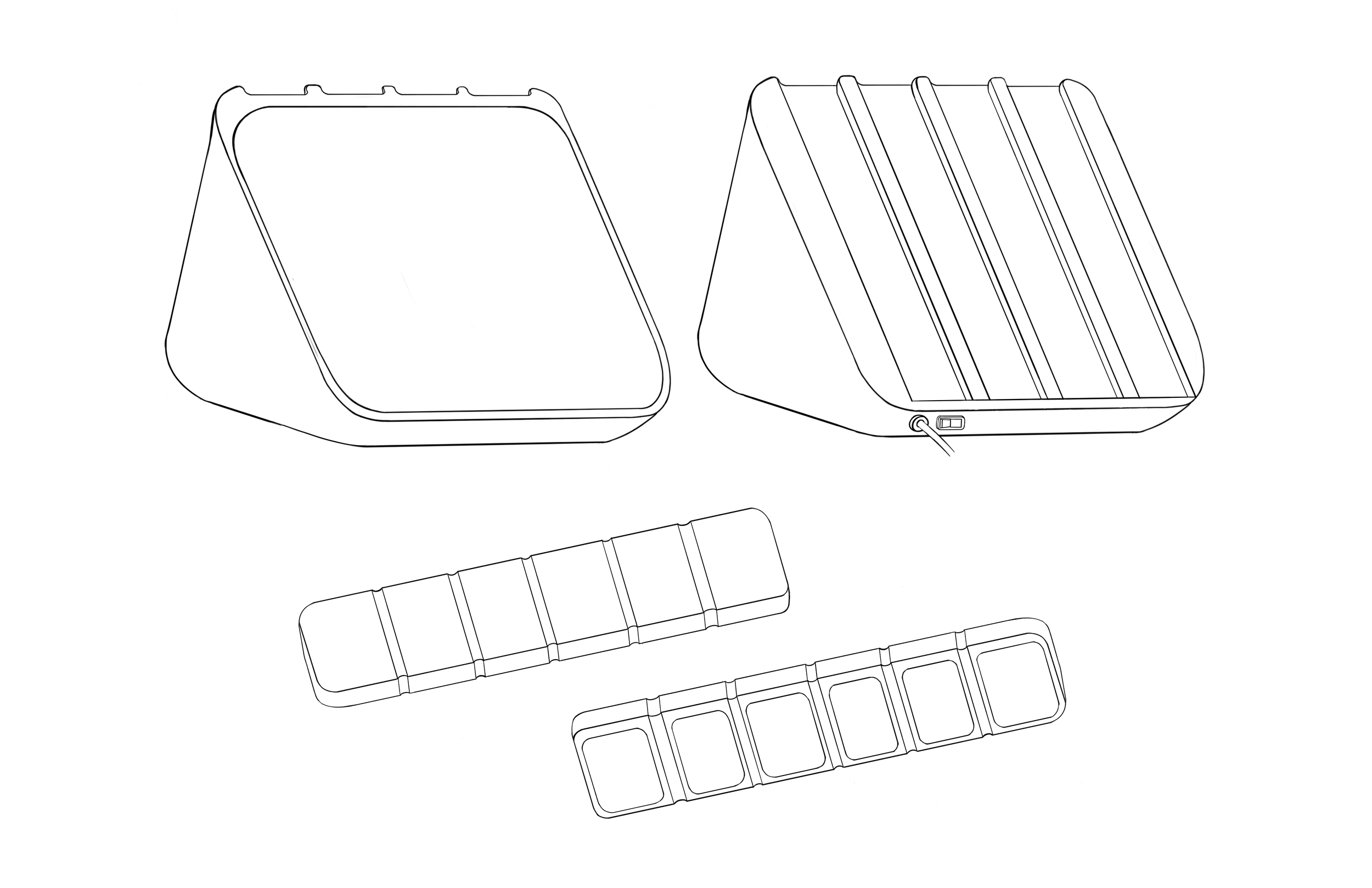

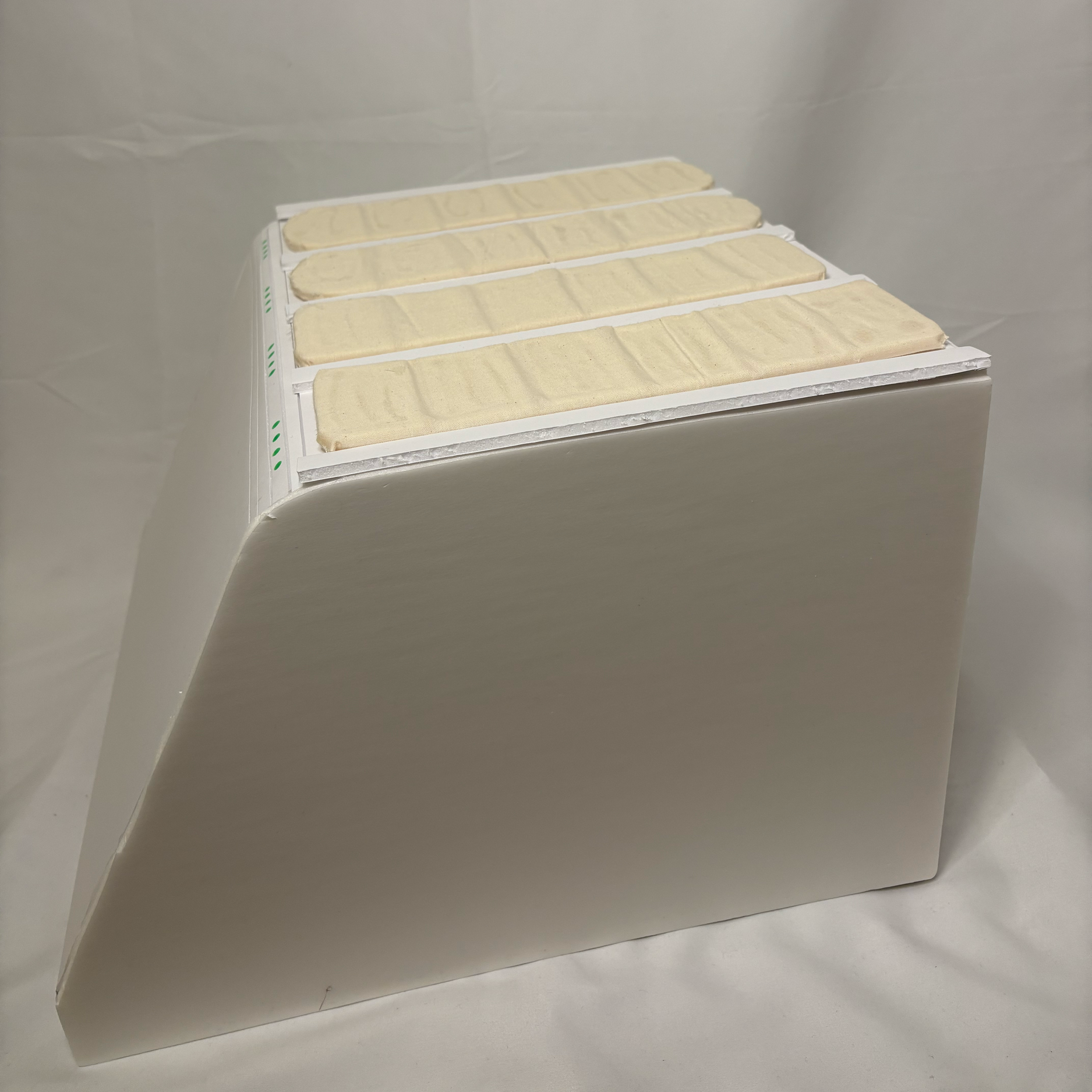

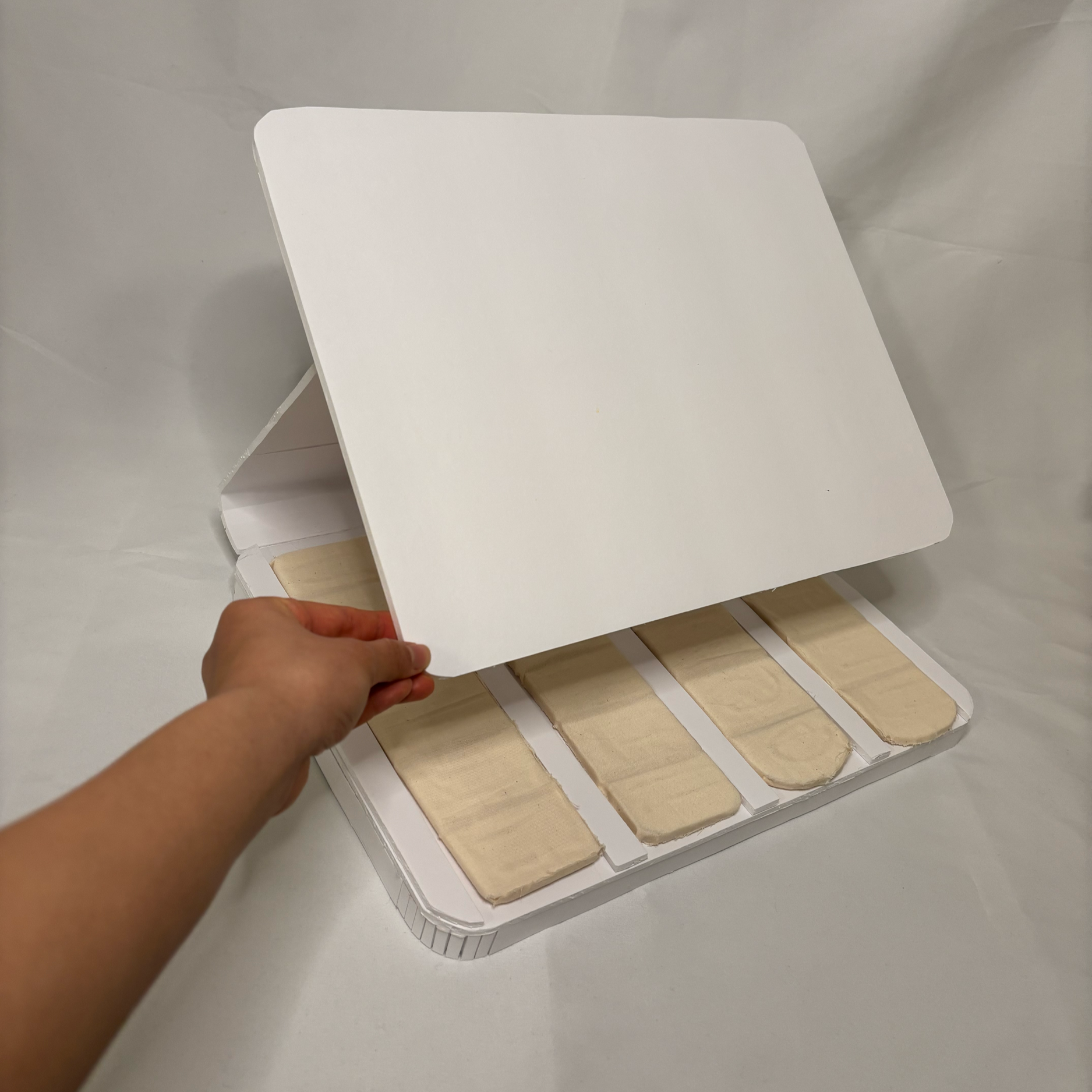

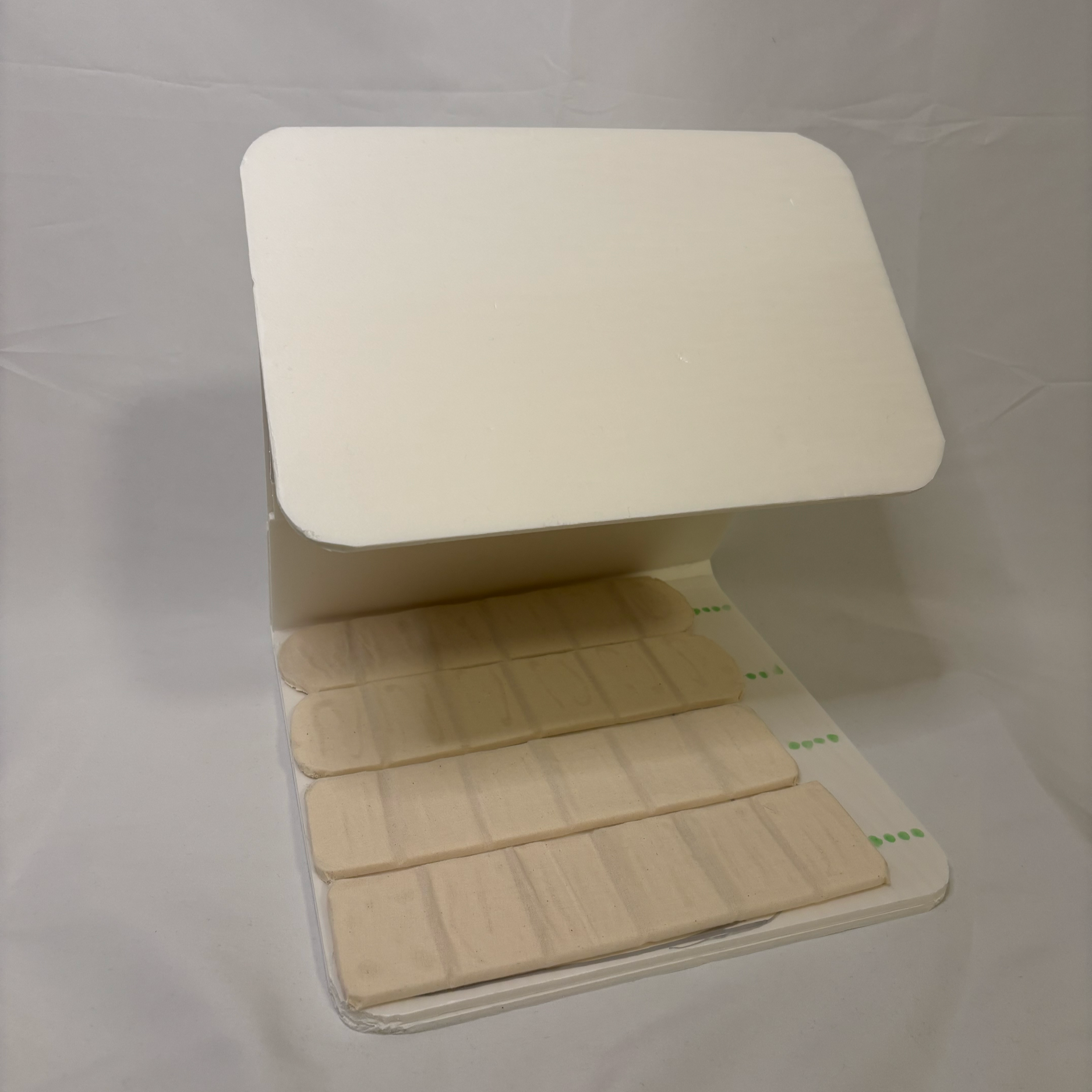

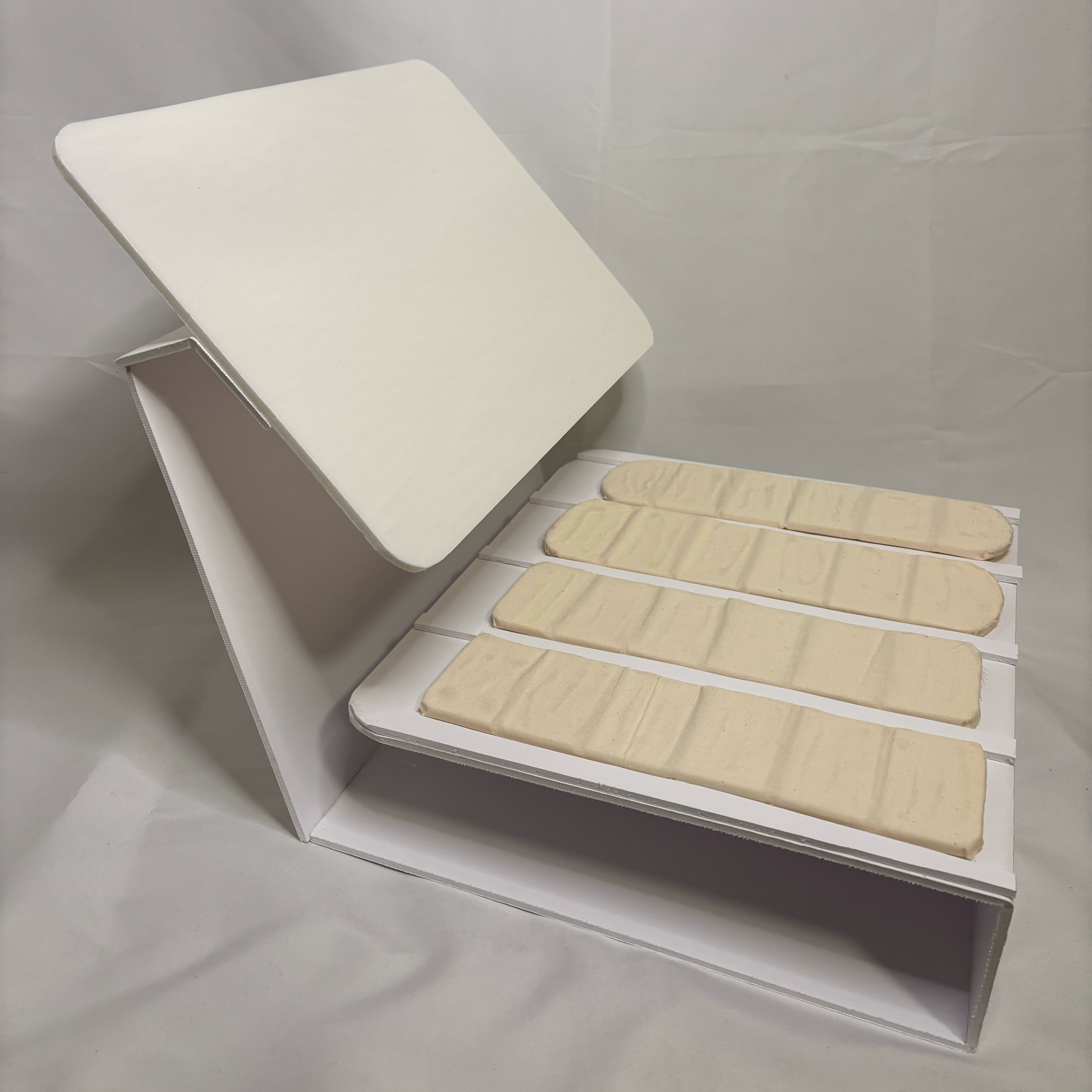

Mockups
Inspiration

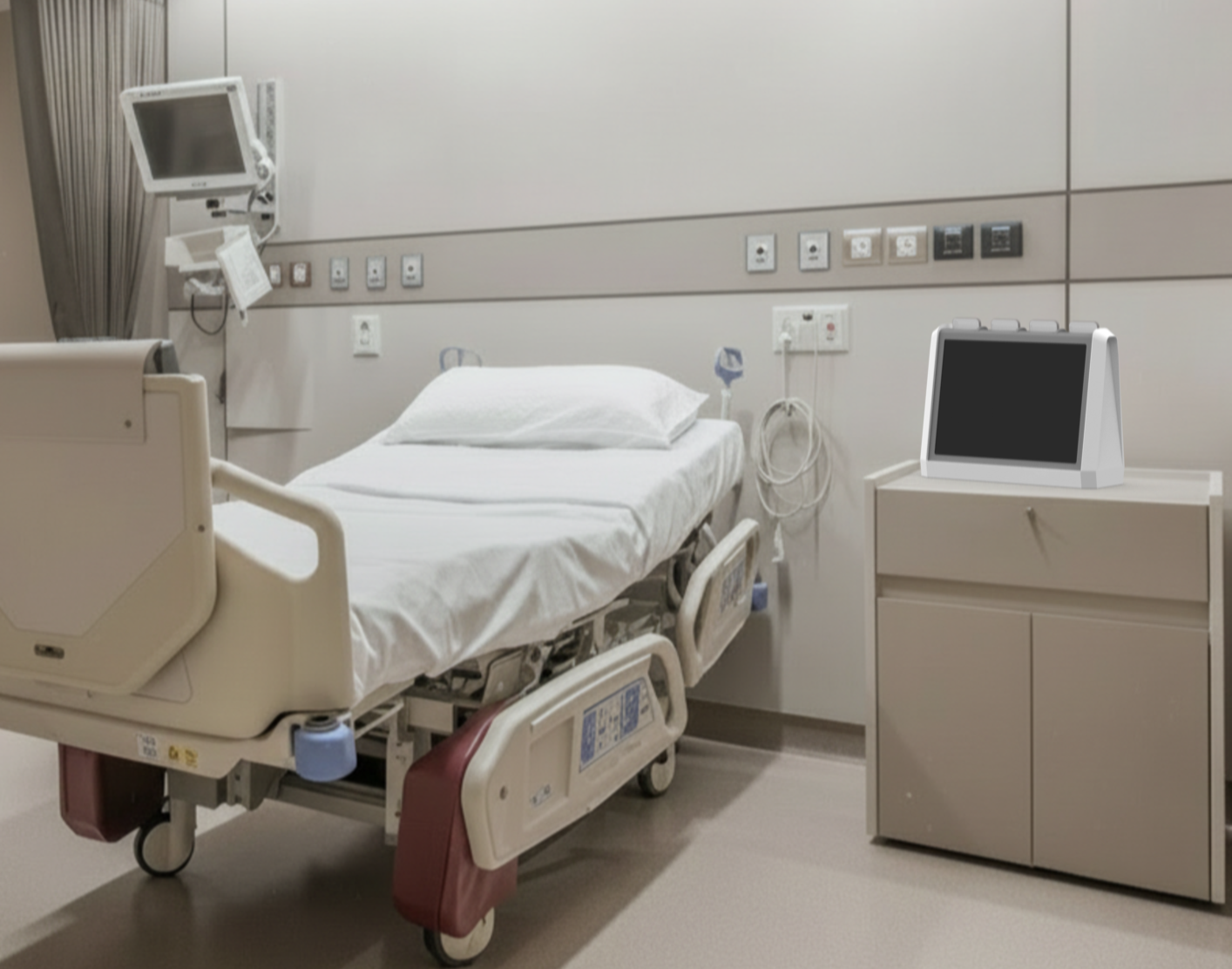

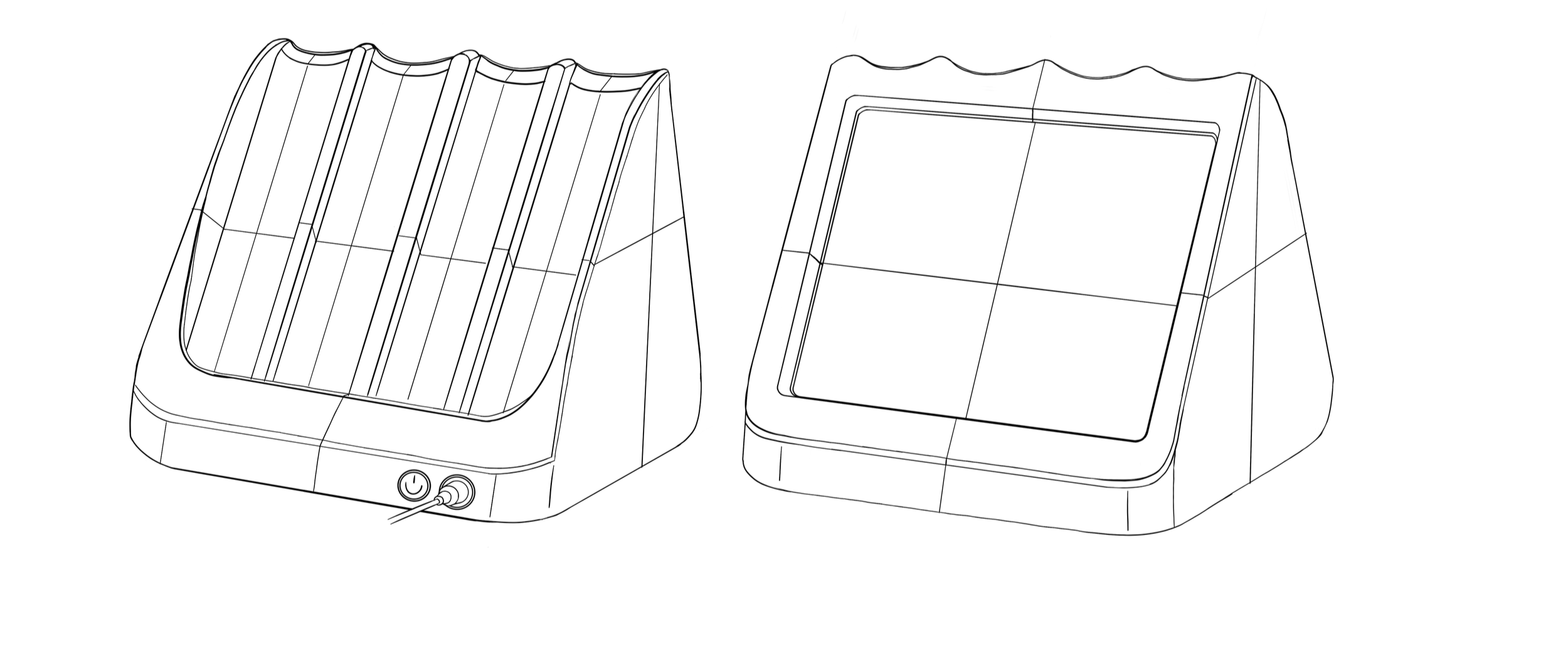

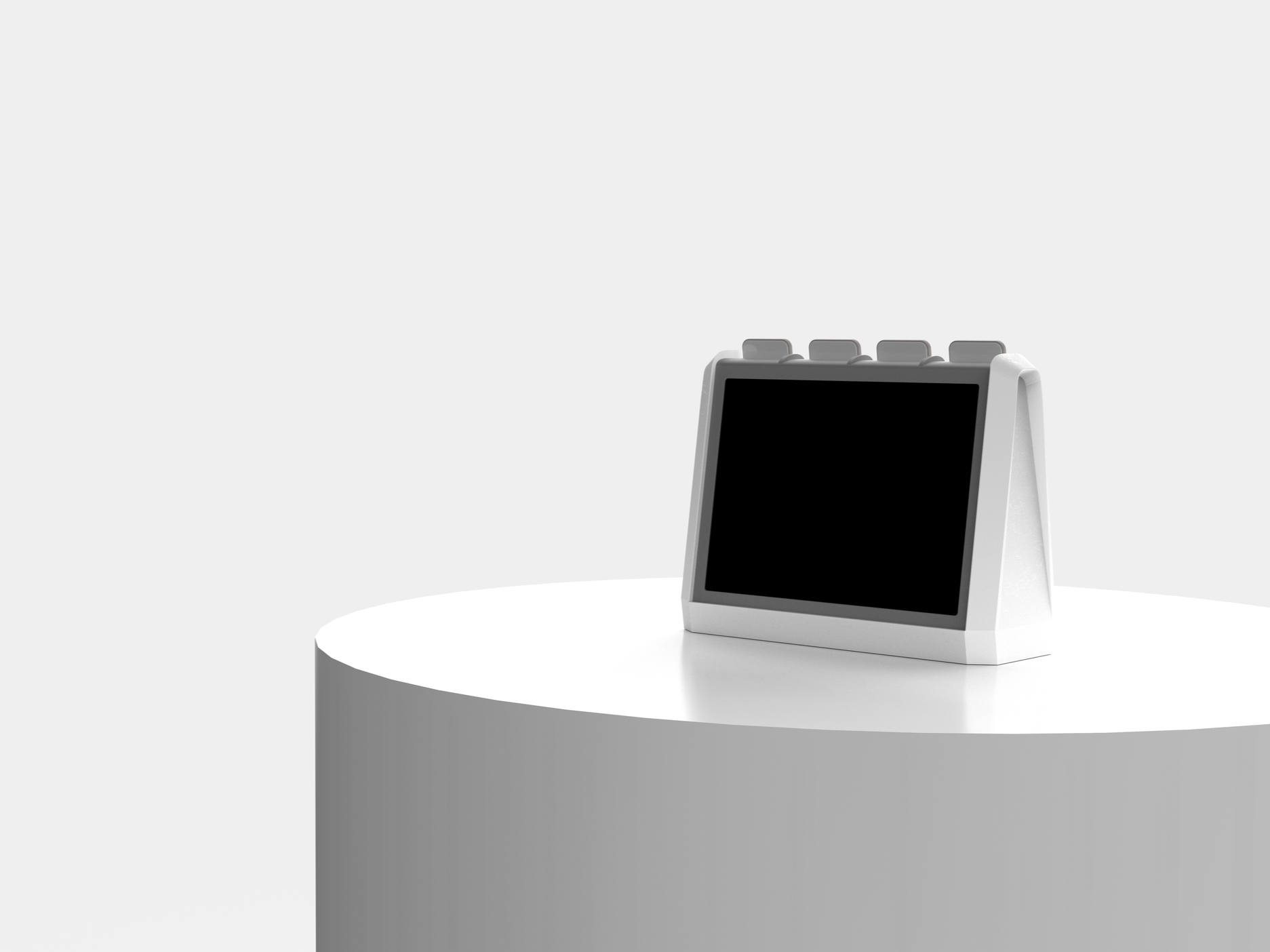

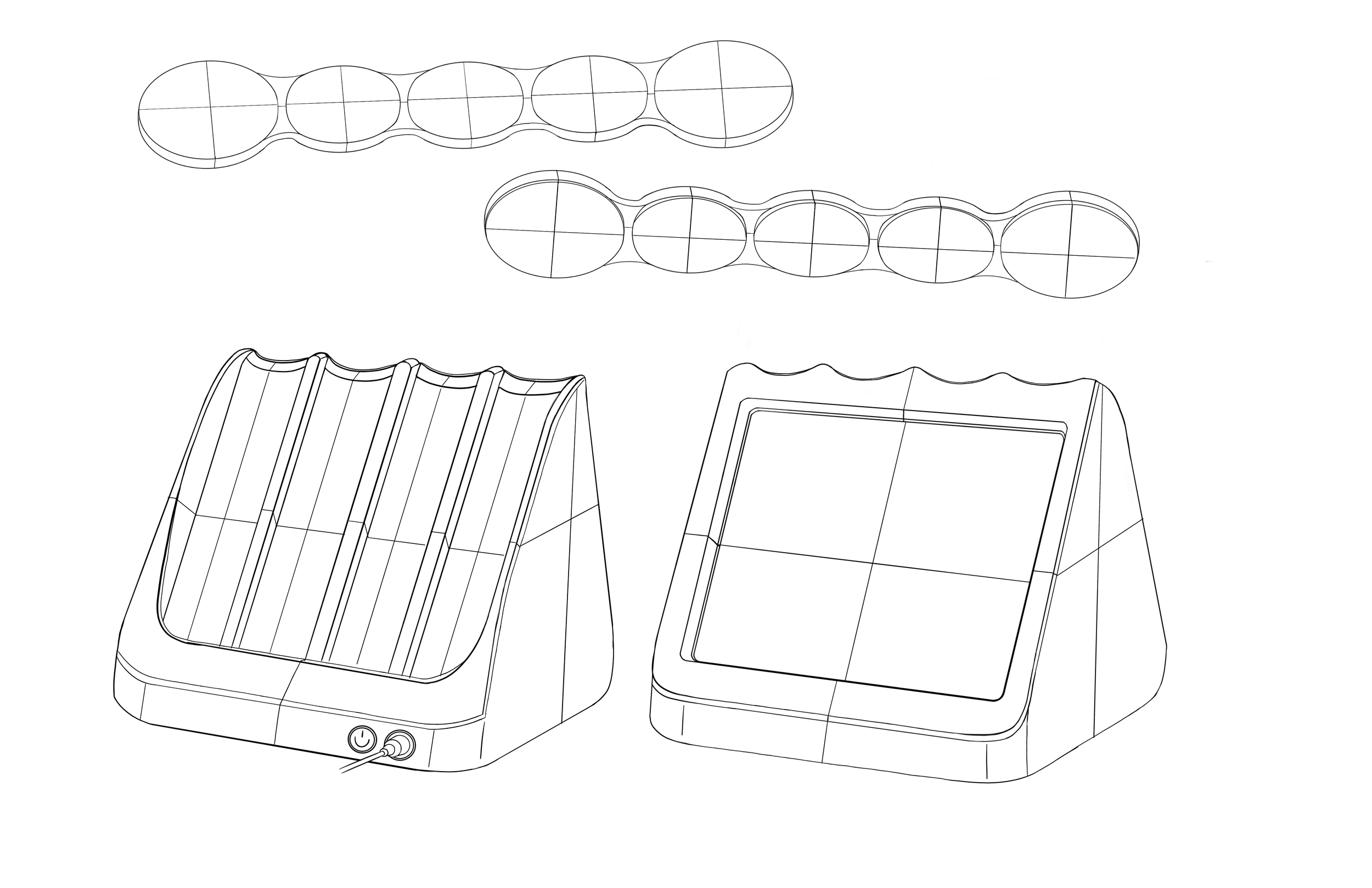

Final Concept

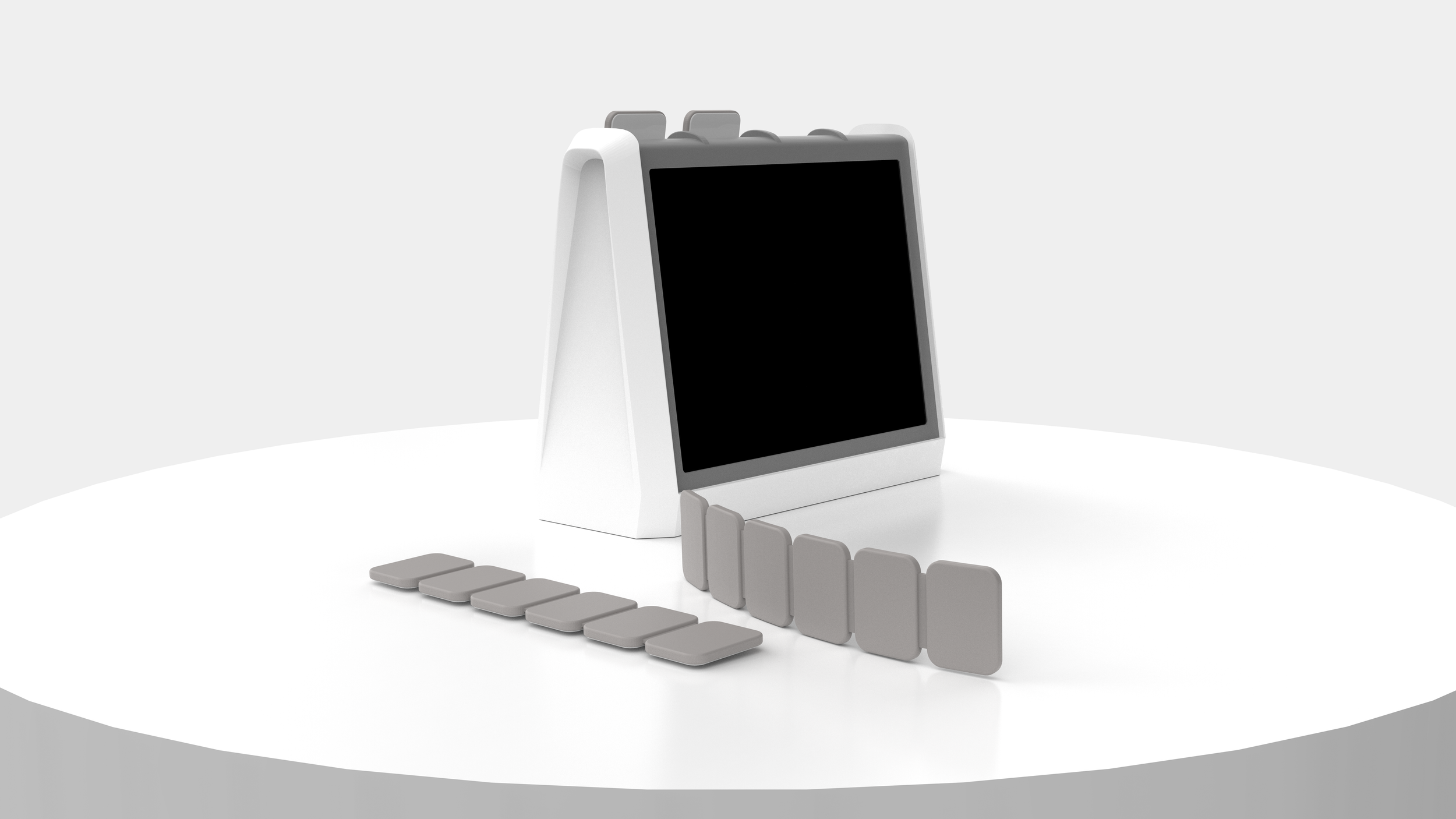

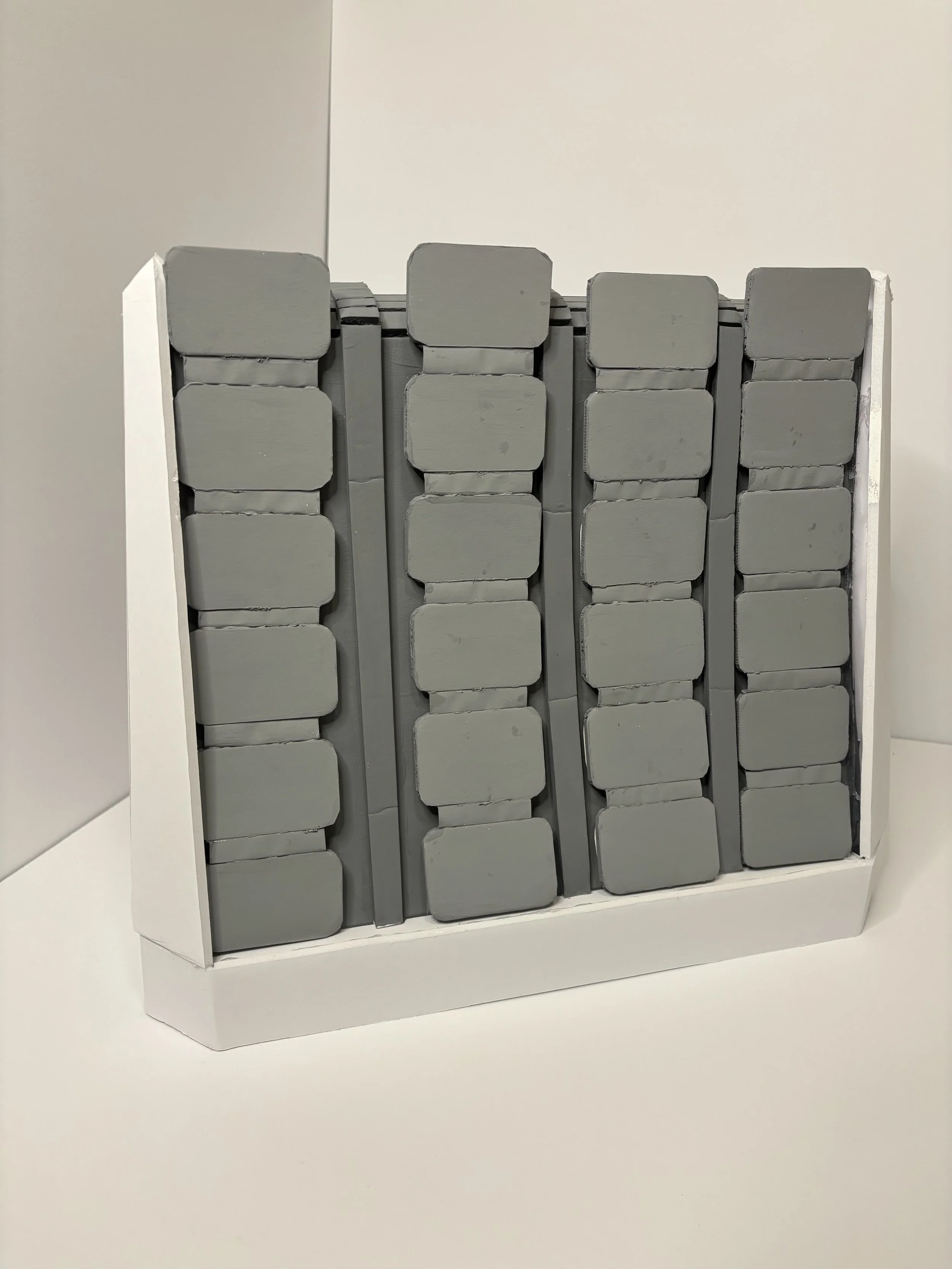

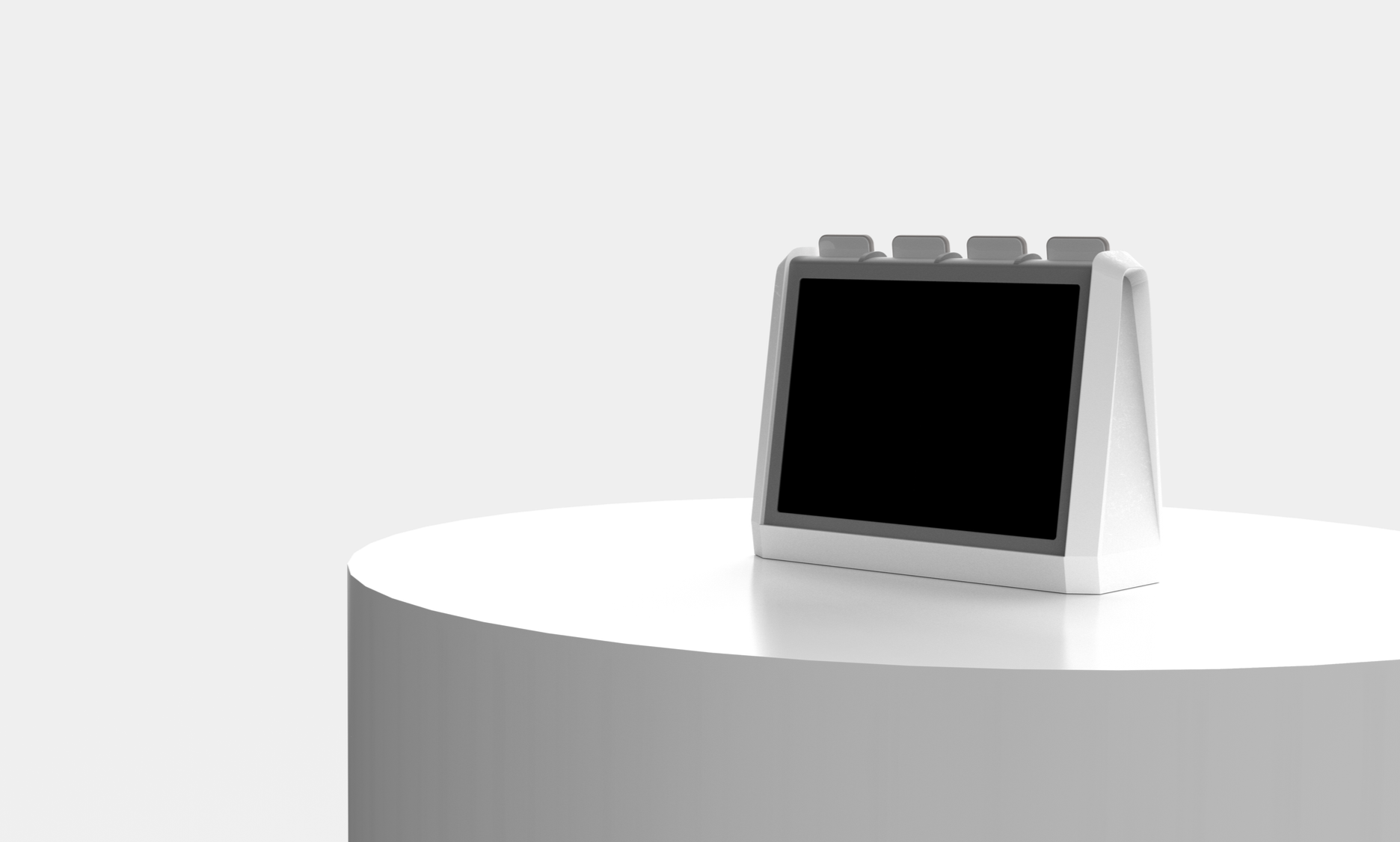

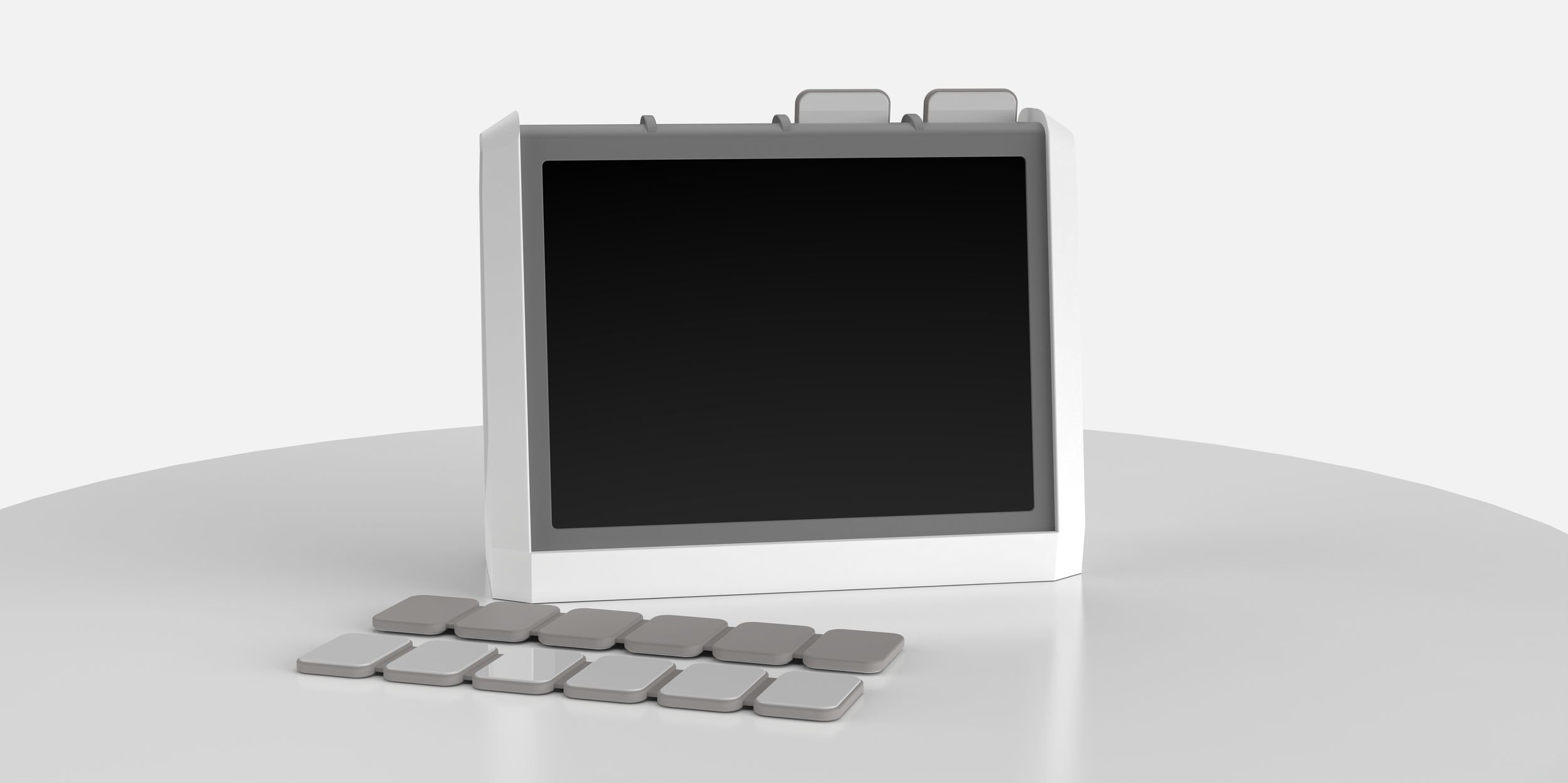

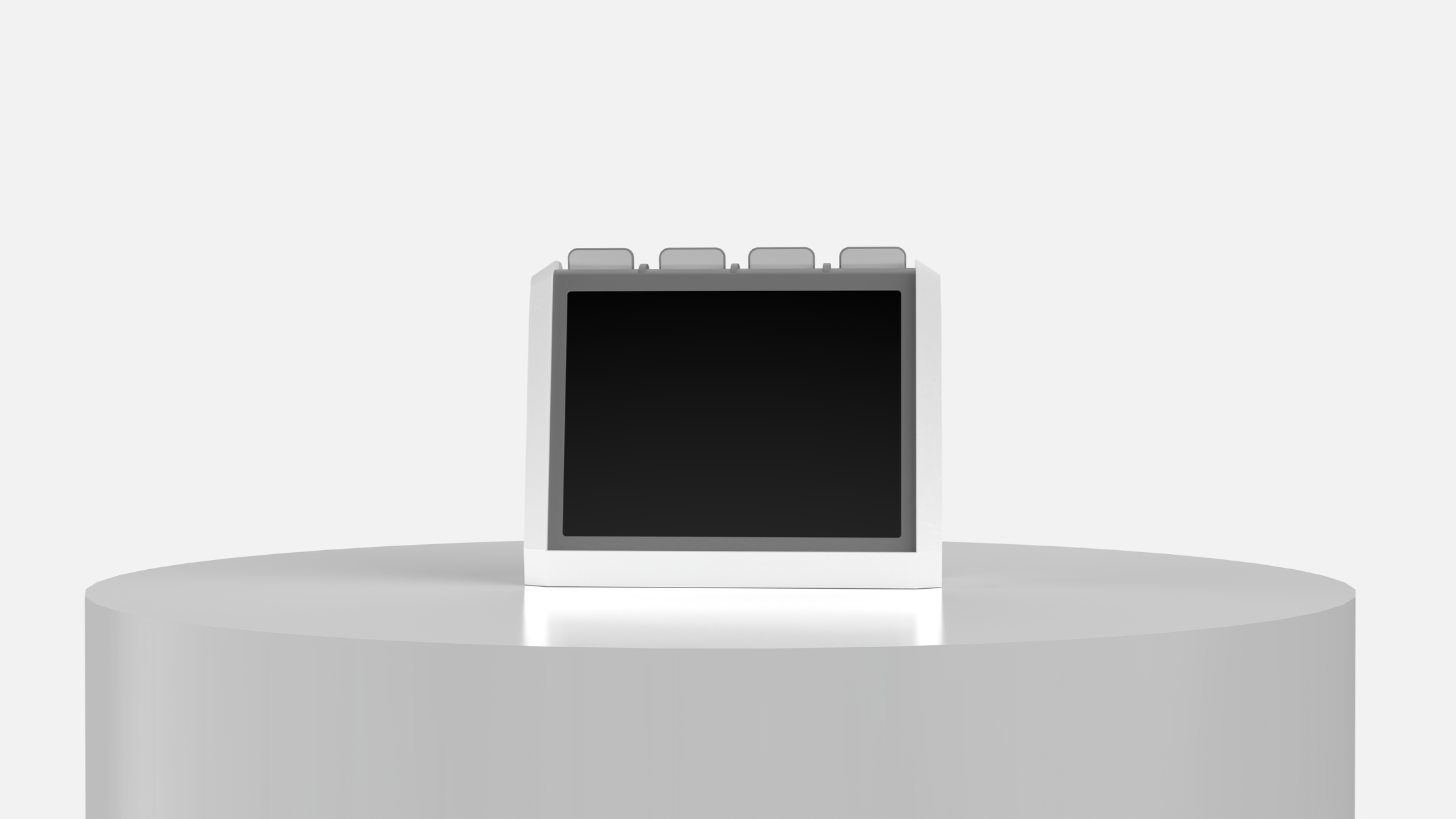

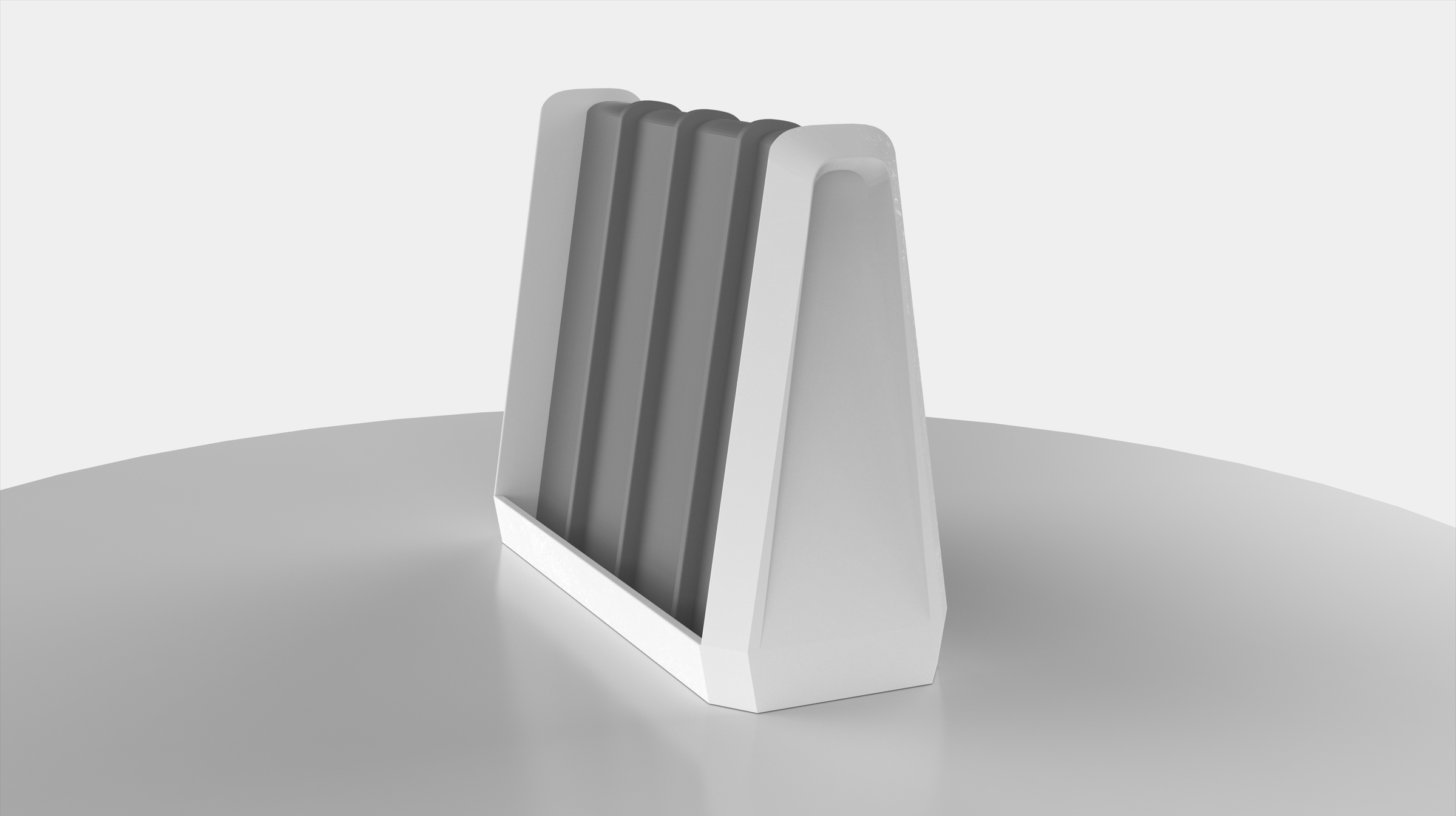

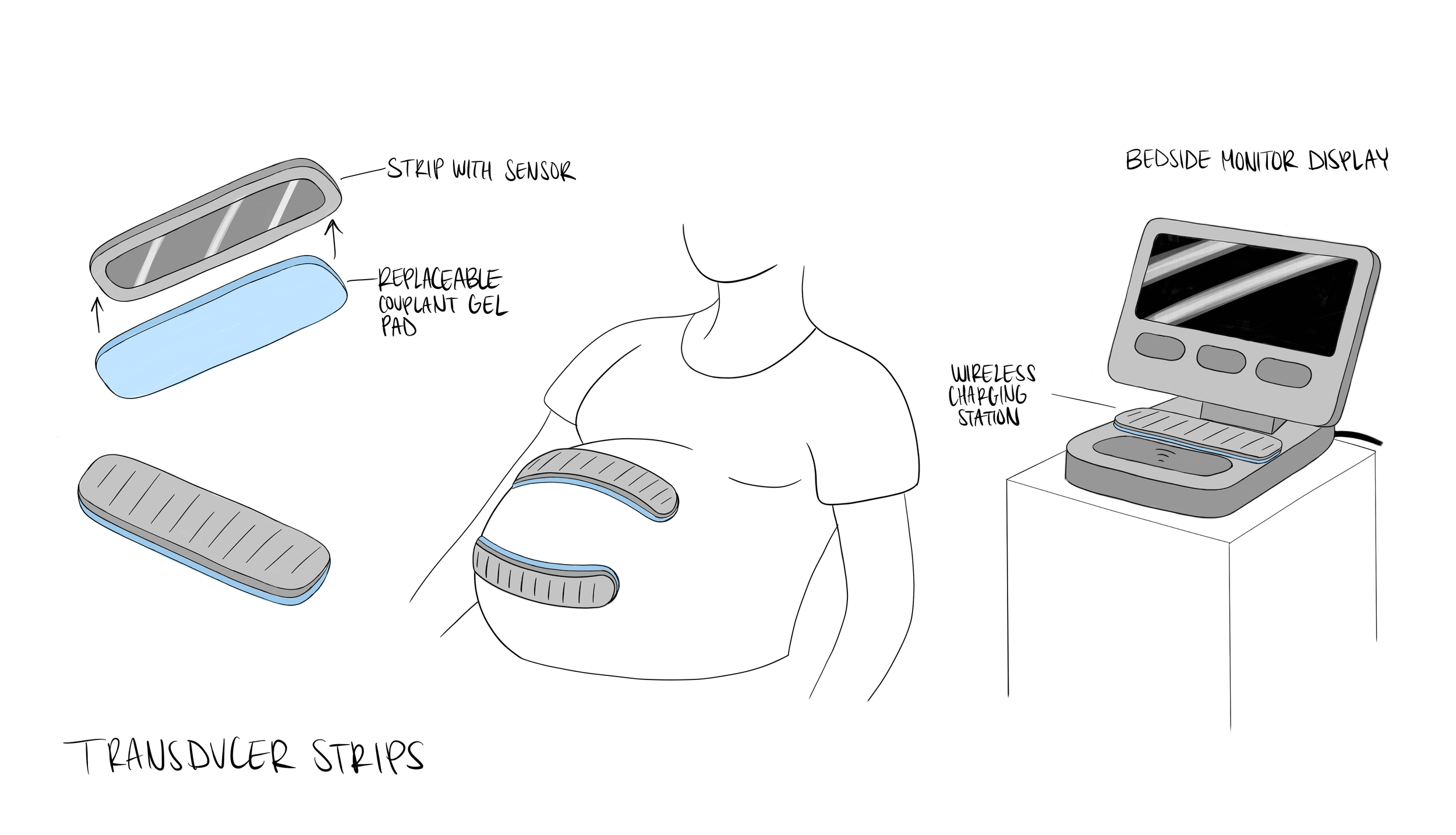

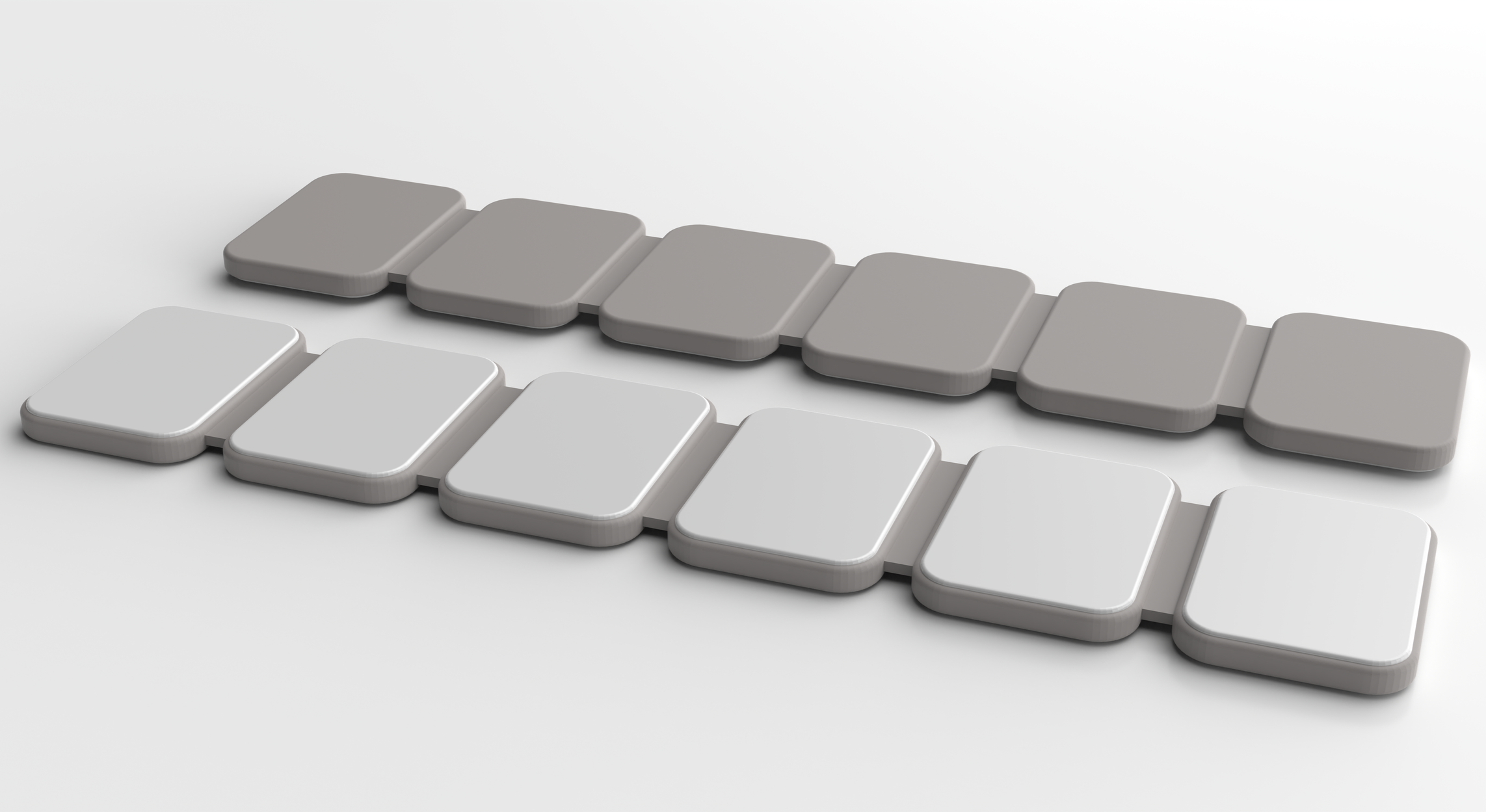

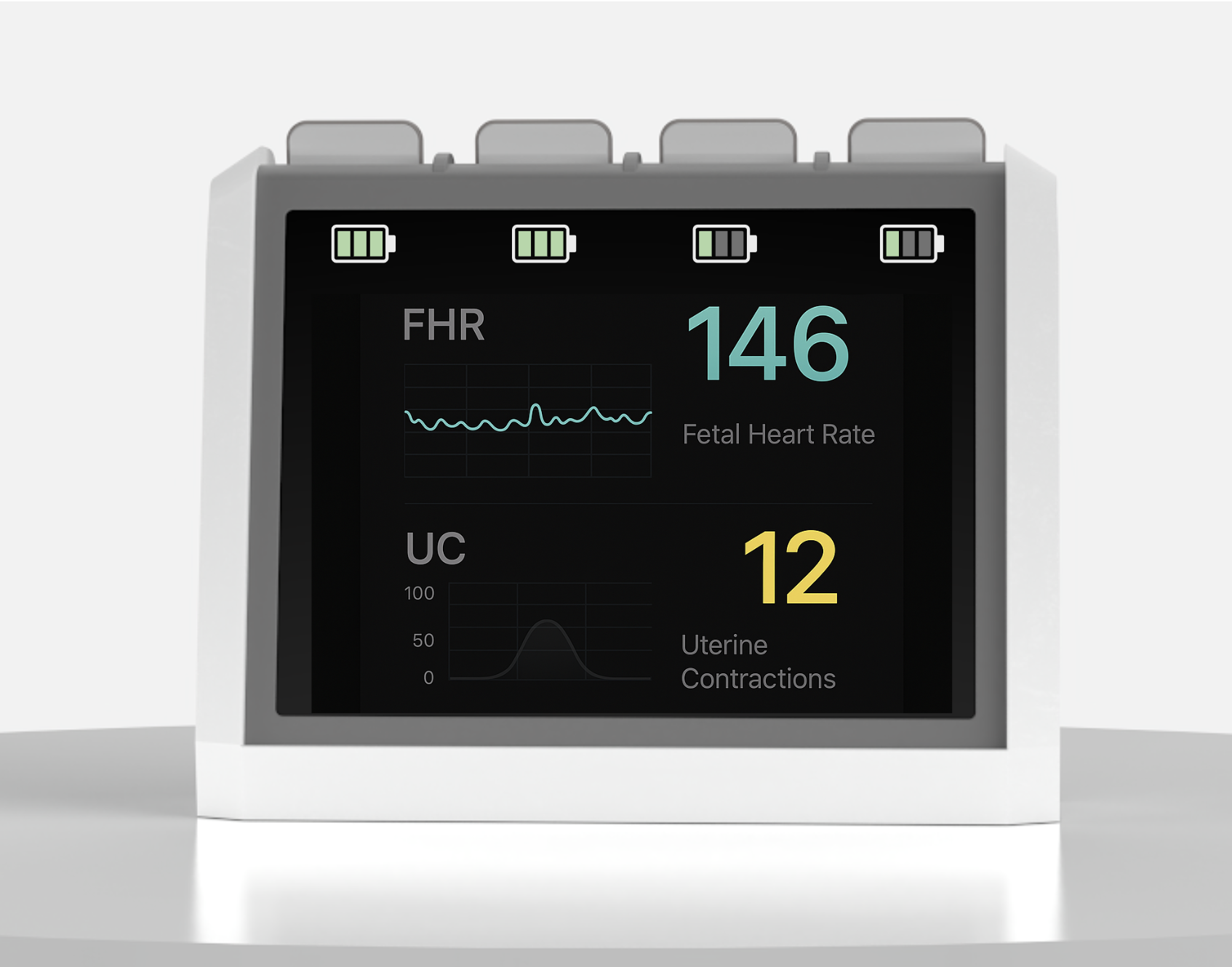

NeoTrak is fetal monitoring reimaged. It consists of a monitor display and four body conforming sensor strips that track fetal heart rate and uterine contractions throughout labor. When not in use, the sensor strips nest neatly into the back of the monitor display, where they recharge wirelessly. The monitor displays the fetal heart race trace and toco trace, as well as the battery life of the strips. The display presents real-time fetal heart rate and toco traces, along with the battery status of each strip, creating a more seamless and intuitive monitoring experience.
